P01196775, Chauvin Arnoux CA 5275 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - UKAS Calibrated, Мультиметр

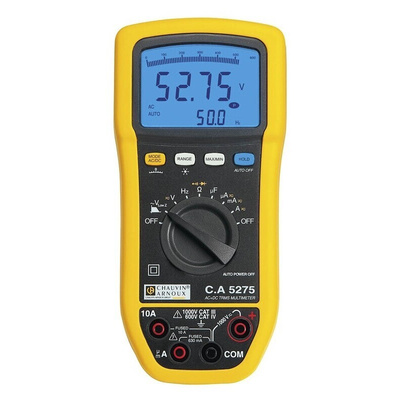

C.A 5275 TRMS Digital Multimeter

The C.A 5275 digital multimeter is particularly compact, making it very easy to handle.

The C.A 5275 is a stand-alone portable digital multimeter specially designed to combine all the functions for measurement of the following electrical quantities in a single instrument
The double 6000 count display is equipped with a 61 + 2-segment bargraph with dual-mode remanent effect
The bargraph has a central zero
AC voltage measurement with low input impedance (voltage measurements for electrical and electrical engineering
applications)
AC and/or DC voltage measurement with high input impedance (voltage measurement for electronics)
Frequency measurement
Resistance measurement
Audible continuity measurement
Measurement and testing of semiconductor junctions
Capacitance measurement
AC and/or DC current measurement
IP54 protection

Standards

CAT IV 600 V and CAT III 1000 V

Supplied with

1.5 m red straight/elbowed cable, 1.5 m black straight/elbowed cable, CATIV 1 kV red test probe, CATIV 1 kV black test probe, alkaline 6LF22 9 V battery, multi-fixture mounting accessory, bag 120 x 200 x 60 mm, quick start guide in 5 languages, operating instructions on CD ROM in 5 languages

Datasheet C.A 5275/5273/5277

User's manual C.A 5275
