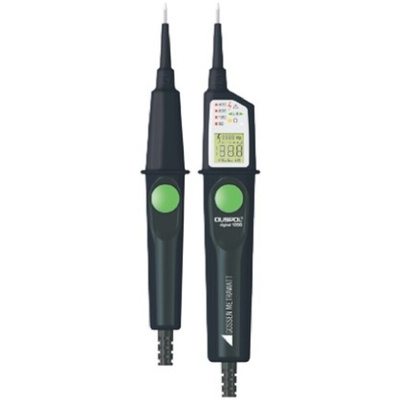

DUSPOL digital 1000 Voltage Tester
The DUSPOL digital 1000 voltage tester is rated for DC and AC voltage tests in a voltage range from 12 V to 1000 V.
With DC voltage, it is possible to perform polarity tests and with AC voltage, it is also possible to perform phase tests with these instruments
The DUSPOL digital 1000 voltage tester shows the phase sequence of a 3-phase current system, provided the neutral point is grounded
Voltage testing
Phase sequence test
Phase testing
Polarity check
Cable fracture detector
Continuity test
Resistance measurement
Diode test
Frequency measurement
Load connection via vibration motor
Vibrating alert: the integrated motor with unbalance signals activity during load testing by generating vibrations in the tester handle
Illumination of measuring points
Rugged housing design with rubberized handle surface
Protection class: IP 65
Power supply: 2 x 1.5 V LR03 / AAA
Standards
EN 61326 Part 1, CAT IV 600 V / CAT III 1000 V
Gossen Metrawatt Voltage Tester
The Gossen Metrawatt DUSPOL digital 1000 voltage tester measures voltage ranging between 1000VACrms and 1200VDC.
Features and Benefits
300kohm resistance measurement
Frequency measurement of 1kHz
Phase sequence test
Phase testing
Polarity check
Cable fracture detector
Continuity test
Diode test
Load connection through the vibration motor
Integrated motor with unbalance signals activity during load testing generates vibrations in the tester handle
Illumination of measuring points and display
Rugged housing design with rubberized handle surface
Power supply is2x1.5V micro LR03/AAA
CAT IV 600V / CAT III 1000V safety ratings
Operating temperature ranges between -15°C and 55°C
Applications
Electrical systems
Industrial sites
Commercial sites
Certifications
IP65 rated (Housing)
DIN VDE 0470 Part 1/EN 60529
EN 61326 Part 1
IEC 61010-1
DIN EN 61010-1
VDE 0411-1
DIN EN 61243-3
VDE 0682-401:2011-02
DIN EN 61243-3
VDE 0682-401:2011-02
DIN EN 61326-1
VDE 0843-20-1
Voltage Level Indicators
A range of voltage testers each available in versions suitable for electronic or electrical applications.
