RS PRO 14 → 35 (T5) W Electronic Fluorescent Lighting Ballast, 220 → 240 V, Электронный балласт

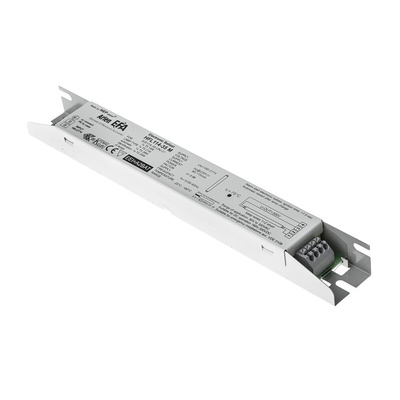

RS PRO 14 to 35 (T5) W Electronic Fluorescent Lighting Ballast, 220 to 240 V

Choose this electronic ballast from RS PRO to protect your fluorescent lamps from overheating and burnout. The versatile unit can be used with any lighting equipment with universal rated voltages of 100 to 277 V AC and 160 to 300 V DC.
The fast-acting ballast preheats and starts the lamp within one second. It operates the lamp at a high frequency for noise-free use without any flicker. This feature also ensures that your lights are long-lasting. The ballast cuts off supply automatically once your lamp nears its end of life to protect your circuitry. Plus, it starts working as usual as soon as you replace your defective lamp with a new one without the need for any rewiring.
A service life of 80,000 hours means you can be confident of long-lasting use. This component complies with RoHS (Restriction of Hazardous Substances) directives so it contains only minimal levels of any harmful substances

Features and Benefits

• Electronic ballast type
• Dimensions of 235 (length) x 30 (width) x 21 mm (height)
• Not dimmable
• A2 European Union (EU) energy efficiency rating
• High frequency
• Operating temperature range of -25°C to +60°C
• One lamp
• T5 supported lamp shape
• Supports fluorescent lamp type
• Voltage rating of 220 to 240 V (volts)
• Wattage of 14 to 35 (T5) W (watts)
