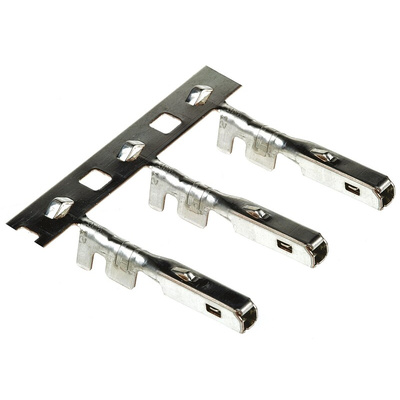

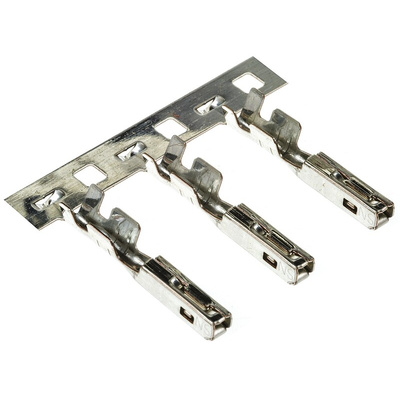

33012-3001, Molex MX150 Series Female Crimp Terminal, 16AWG Min, 14AWG Max, Контакты

MX150™ Female Crimp Terminals, 1.50mm - 33001 and 33012 Series

Female crimp terminals for the MX150™ connector system. These female crimp terminals are matte sealed, have a low insertion force of 3.0 N (average) and meet USCAR performance testing. The electrical ratings for these female crimp terminals is 250 V, 22 A. These female crimp terminals mate with series 33001 male terminals, stock numbers 720-5700 typically.
For use with series 33472 female connectors, stock number 720-5726 typically.
For use with series 93288 female SRC connectors, stock number 775-4448 .
For use with series 85083 female SRC Hybrid connectors, stock number 775-4442 .

Note

For a range of MX 150 Tooling see stock number 778-6717 typical.

Molex Crimp Terminal, 16 to 14AWG, Female Gender - MX150 Series - 33012-3001

Do your operations depend on steadfast connections? Get a reliable grip with this female crimp terminal from Molex. It's shaped to compress firmly around your conductors and is made from high-performance alloy for maximum conductivity and on-point signal transfers. Thanks to its 22A current rating, the unit's suitable for use with demanding equipment. Installation is easy as can be – simply insert your stripped wires and crimp the casing using a compatible hand tool (such as 778-6691).

Features & Benefits

• Handles wire-to-wire and wire-to-board connections for versatility
• Tin-plated contacts are highly conductive for reliable performance
• Light weight of 0.434g puts minimal strain on your PCB

Applications

• Robotics systems
• Industrial control panels
• Consumer electronics
• Telecommunications networks
• Medical devices

Which crimp terminal can I use with this part to complete my circuit?

It's an accurate fit for the Molex MX150-series male crimp terminal (720-5700).

Molex MX150™ Sealed Connection Systems

Datasheet

Datasheet

Line Drawing - 33012 - 3001
