33000-1001, Molex MX150 Series Male Crimp Terminal, 14AWG Max, Контакты

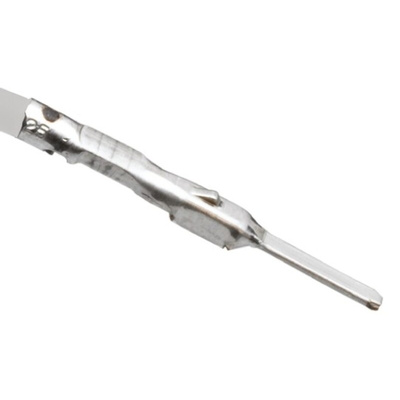

MX150™ Male Crimp Terminals - 33000 Series

Male crimp terminals for the MX150™ connector system. These male crimp terminals are matte sealed, have a low insertion force of 3.0 N (average) and meet USCAR performance testing. The electrical ratings for these male crimp terminals is 250 V, 22 A. These male crimp terminals mate with series 33012 and 33001 female terminals, stock numbers 720-5716 and 720-5713 typically.
For use with series 33472 female connectors, stock number 720-5726 typically.
For use with series 93287 female SRC connectors, stock number 775-4436 .
For use with series 85084 female SRC Hybrid connectors, stock number 775-4445 .

Note

For a range of MX 150 Tooling see stock number 778-6717 typical.
