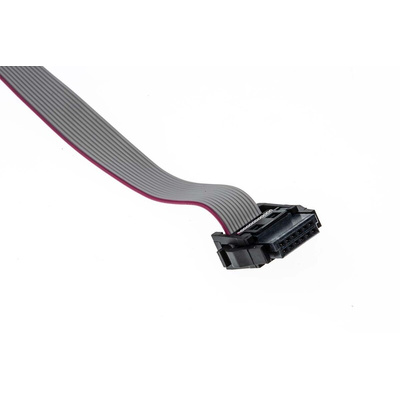

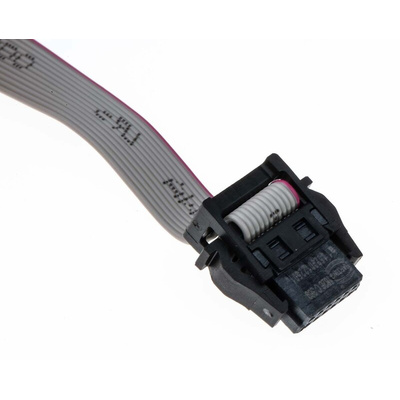

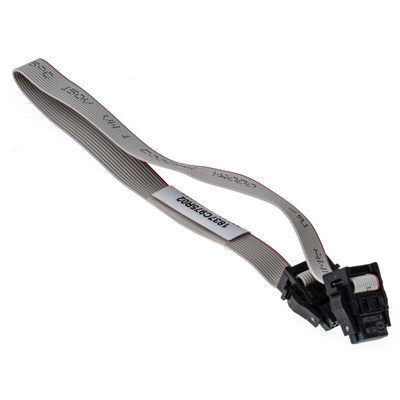

33152430200005, Harting 200mm, Female IDC to Female IDC, 12 Ways, Ribbon Cable Assembly

Harting har-flex Cable Assembly with Strain Relief Female Connectors

From Harting, these har-flex double ended flat Cable Assemblies are fitted with Strain Relief Female Connectors. The ribbon cable used for these har-flex cable assemblies is 30 AWG with PVC insulation and 0.635 mm pitch. The connectors used for these har-flex cable assemblies have a Performance Level of 1, >500 matings.

Note

For mating vertical headers see stock number 747-2525 typical.
For mating right angle headers see stock number 774-4120 typical

The 1.27mm Harting har-flex Series

The Harting har-flex series connectors represent a space saving, rugged and flexible solution for a wide range of Board-to-Board applications in SMT technology. The continuous scalability by an even number of contacts, i.e. from 6 to 100, of the Harting har-flex connector series is a special feature forming an ideal basis for customized applications. Mezzanine, Extender-Card and Mother-to Daughtercard Board to Board applications can be designed using the har-flex series of connectors.

Har-Flex Double Ended Female Flat Cable Assembly - Catalogue Page

Har-Flex Double Ended Female Flat Cable Assembly - Drawing

Har-Flex IDC Female Connectors used in Flat Cable Assemblies - Drawing
