LFS-02, Sensata / Cynergy3 Cynergy3 LFS Series Paddle Flow Switch, 15.2 L/min, 19 L/min Min, 60.6 L/min, 83.3 L/min Max

Paddle Flow Switch - LFS Series

The LFS range of flow switches are paddle devices that are mounted vertically through a socket or upstand process connection. Electrical connections are made within the housing, which has a screw on sealed lid and cable gland. A choice of paddle sizes is supplied with each switch. Higher temperature versions are designated by "H" in the part number.

Features and Benefits

• Stainless steel SS 304 paddle
• G3/4"" or 1""NPT mounting plug thread
• Aluminium alloy housing or DIN 43650 plug
• Maximum operating pressure 20 bar
• Operating pressure up to 150°C (H versions)

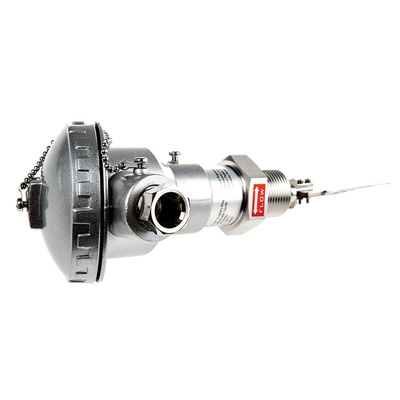

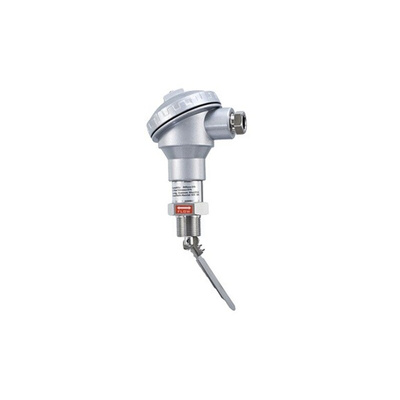

Sensata Cynergy3 Paddle Flow Switch, 1A, 20 Bar - LFS Series - LFS-02

Accurately control the flow of liquid in a pipe with this paddle flow switch from Sensata Cynergy3. It's made from a robust aluminium alloy material that has high resistance to corrosion and wear for an extended service life. For greater electrical safety, the wiring is contained inside the housing and protected by a sealed lid that screws into place. You'll find paddle flow switches like this one used to ensure an appropriate flow rate in systems such as pumps and boilers.

Features & Benefits

• IP65 (ingress protection) rating for protection against dust and low-pressure water jets
• Wide operating temperature range of -30°C to +75°C for use in demanding environments
• Maximum pressure of 20 bar for use in high-pressure applications
• 3/4-inch BSP (British Standard Pipe) connection for a simple and secure attachment
• Paddle made of stainless steel for resistance to corrosion in harsh environments

What size pipes can I use this paddle flow switch with?

This switch is compatible with pipes ranging in diameter from 1 to 3in, making it a versatile choice.
