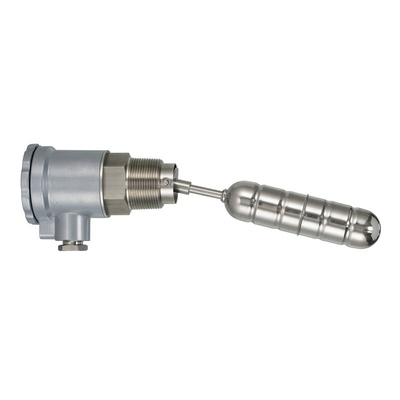

SH-3151, Sensata / Cynergy3 SH-3 Series Horizontal 316L Stainless Steel Float Switch, SPDT, 250V ac Max, 120V dc Max

SH-3 Series Horizontal Float Switch

SH-3 Series horizontal float switches from Cynergy 3 feature a pivoted float arm. Different switching options are available by using either a reed switch or a microswitch. The SH-3 float switches are made with an aluminium enclosure with a screw lid and cable gland.

SS 316L float material
External mounting via screw thread

Approvals

RoHS

Sensata Cynergy3 Float Switch, Horizontal Mounting Type, 25 Bar Maximum Pressure - SH-3 Series - SH-3151

Choose this float switch from Sensata Cynergy3 for monitoring liquid levels in your tank. It works with an alarm, pump or sensor to automatically control the filling of your tank, preventing it from running dry or overflowing. Thanks to its stainless steel float, this component is corrosion-resistant and compatible with most hydraulic fluids and fuels. It's also easy to clean for use in hygienic applications. A maximum operating pressure of 25 bar means you can safely use the device in high-pressure tanks. You can use this float switch in applications such as beverage processing or the pharmaceutical industry.

Features & Benefits

• IP65 rating means it's dust-tight and protected against low-pressure water jets
• Broad operating temperature range of 0ºC to +100ºC for use in harsh conditions
• Screw-in mounting thread for easy attachment to the wall of a tank

Does this float have a reed switch?

Yes, this float has a reed switch to perform its switching action. When fluid levels in a tank move the float, a magnet inside moves closer to the reed switch. This causes the circuit to open or close to maintain liquid levels.
