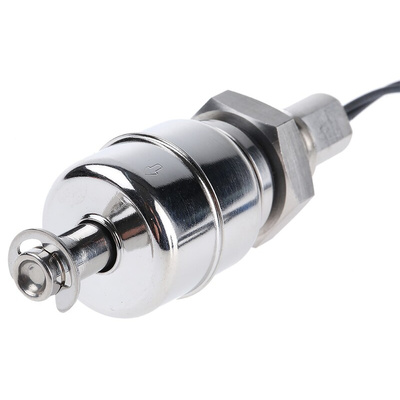

SSF23X100, Sensata / Cynergy3 SSF23 Series Vertical Stainless Steel Float Switch, Float, 1m Cable, NO, 300V ac Max, 300V dc Max

Sensata Cynergy3 Vertical Float Switch, 10 Bar, 500mA - SSF25 Series - SSF23X100

Use this vertical float switch from Sensata Cynergy3 to automatically control liquid levels in your system. Its NO (normally open) contact configuration means your circuit will activate when a set water level is reached. This can trigger a pump to regulate levels, moving liquid in or out to meet your needs. Thanks to its corrosion and wear-resistant nitrile gasket, this switch protects against leaks and is compatible with chemicals, oils and other abrasive substances. The body is made from corrosion-resistant stainless steel for long-lasting performance. You'll find a switch like this one used in industrial water tanks and boilers.

Features & Benefits

• Wide operating temperature range of -20°C to +120°C for use in demanding environments
• Maximum pressure of 10 bar for use in high-pressure systems
• Ample cable length of 1m for a flexible connection

How do you install this vertical float switch?

This float switch mounts vertically to the top or bottom of your tank, so it's suitable for tanks without side access. It comes with an M16 mounting thread for a simple and secure fitting.

SSF23 M16 Internal Float Switch Datasheet

Brochure - SSF23X

Selection Guide - RSF88YP

Information Sheet - ILSE-G0100-5
