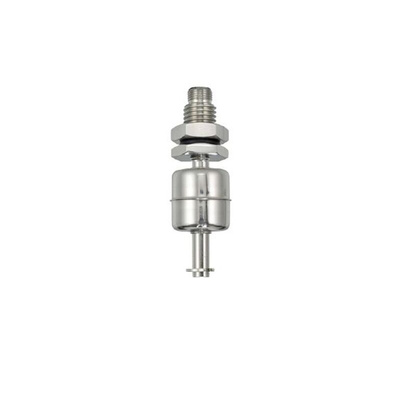

SSF23XPM12, Sensata / Cynergy3 Cynergy3 SSF23 Series Vertical Stainless Steel Float Switch, Float, NO, 300V ac Max, 300V dc Max

Sensata Cynergy3 Vertical Float Switch, 1m, 500mA - SSF23 Series - SSF23XPM12

Use this Sensata Cynergy3 float switch to alert you of changes in your container's liquid levels. It helps you monitor high or low levels to prevent your tank from overflowing or underfilling.
The sensor component floats on the surface of the liquid and uses magnetic force to activate the switch when tank levels rise or fall. It's a vertical switch, so you can mount it to the top or bottom of a tank. It's typically used on containers with no side access.

Features & Benefits

• 316-grade stainless steel body material is corrosion-resistant to protect the component from rust
• Broad operating temperature range of -20°C to +120°C makes it suitable for use in extremely hot or cold environments
• Maximum operating pressure of 10 bar for use in pressurised systems
• M16 conduit for secure threading onto a medium-sized internal fitting

Is this switch susceptible to leaks?

The switch connection is insulated by a gasket ring to prevent leaks. Its nitrile rubber construction has high resistance to water and oil, and its high-strength design can withstand pressure build-ups without loosening its hold. This protects against leakage to ensure reliable performance.
