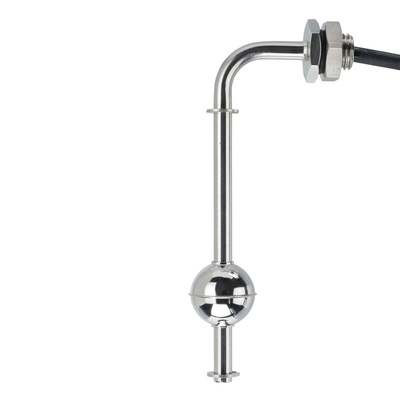

SSV66A35B185SM16, Sensata / Cynergy3 Sensata/Cynergy 3 SSV66-SM16 Series Vertical Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 300V dc

SSV66-SM16 Side Mount Vertical Dual Level Switch

SSV66-SM16 series of side mount level dual switches from Cynergy 3. These mounts have a side entry and are mounted inside of your tank, suitable access is required. The dual switch provides the user with high/low indication and can be used in systems where processes are controlled via PLC.

M16 mounting thread
Stainless steel 316L
1 metre standard cable length
Internal mounting

Sensata Cynergy3 Float Switch, 500mA Maximum Switching Current, 222mm Length - SSV66-SM16 Series - SSV66A35B185SM16

Monitor the water levels in your tank with this Sensata Cynergy3 float switch. When the water level changes, its magnetic float moves up or down along a fixed stem, which is mounted vertically on the tank's inner wall. For efficient level management, this NO/NC unit has an upper and lower switch that will activate when the water falls or rises past a certain point. As the unit is made from 316-grade stainless steel, it's resistant to impact and corrosion for use in harsh conditions. The silicone sheath on its 1m cable ensures flexibility for wiring in tight areas. You'll find this float switch used in evaporators and vending machines.

Features & Benefits

• Nitrile gasket material is resistant to corrosion and chemicals to prevent leakage and maintain system efficiency
• M16 mounting thread for quick and easy installation
• Compatible with PLCs for enhanced control over your system

Can I use this float switch in demanding environments?

Yes. Thanks to its wide operating temperature range of -20°C to +120°C and its maximum pressure of 20 bar, this unit can withstand use in demanding environments.
