SSF67A25B125PM12, Sensata / Cynergy3 Sensata / Cynergy 3 SSF67PM12 Series Vertical Stainless Steel Float Switch, Float, NO/NC, 250V ac Max, 120V dc Max

SSF67PM12 Series Level Float

These SSF67 series floats from Cynergy 3 have been designed to provide different switching options with a longer reach float. The float is made with stainless steel 316L making it suitable to use with aggressive liquids and in applications where hygiene is an important consideration. The float will provide an indication for high and low levels which can be used for alarms and control systems.

Single or dual switching levels
M16 mounting thread

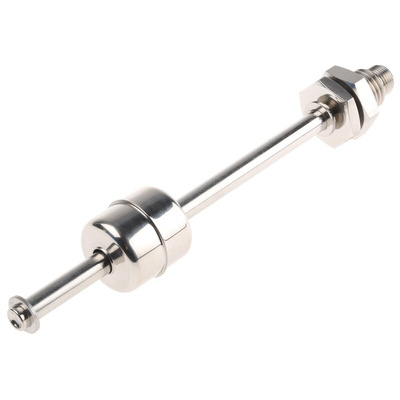

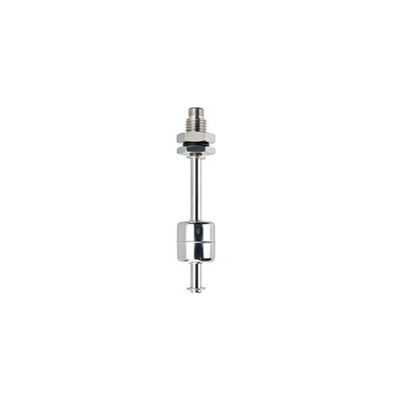

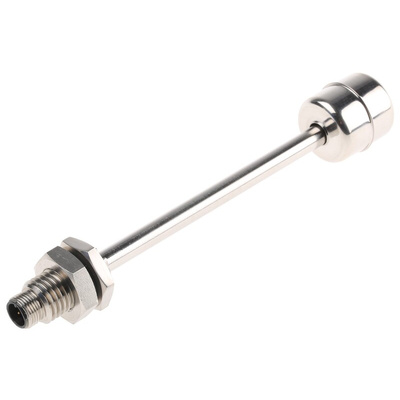

Sensata Cynergy3 Vertical Float Switch, 10 Bar, 152mm Length - SSF67PM12 Series - SSF67A25B125PM12

Use this vertical float switch from Sensata Cynergy3 to monitor the level of fluid in your tank. You can connect it to your control system to quickly notify you if the tank is underfilled or overfilled. Its robust nitrile gasket is resistant to chemicals and wear to ensure a long-lasting seal, helping to prevent leaks for improved performance. Thanks to the switch's durable stainless steel body, the device is corrosion-resistant and easy to clean, making it safe for hygienic applications such as food and beverage production.

Features & Benefits

• Maximum switching current of 600mA for energy-efficient operation
• Maximum operating pressure of 10 bar for safe use in high-pressure environments

How do I set up this float switch?

You can easily mount this switch from the inside of the tank thanks to its M16-sized mounting thread. Its built-in M12 4-pin plug lets you directly connect it to an electrical circuit for ease of set-up.

What's the operating temperature of this float switch?

This float switch has a broad operating temperature range between -20°C and +135°C, making it suitable for use in demanding environments.

SSF67PM12 Series Dual Switch Point Datasheet
