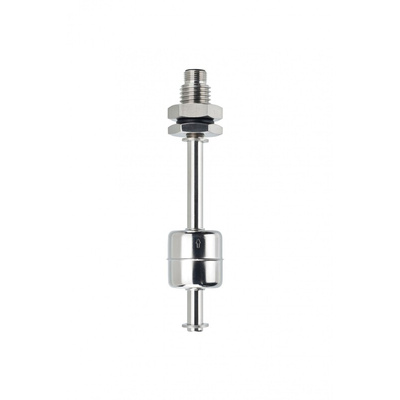

SSF67A25B75PM12, Sensata / Cynergy3 Sensata/Cynergy 3 SSF67PM12 Series Vertical Stainless Steel Float Switch, Float, NO/NC, 250V ac Max, 120V dc Max

Sensata Cynergy3 Vertical Float Switch, 10 Bar, 102mm Length - SSF67PM12 Series - SSF67A25B75PM12

Use this float switch from Sensata Cynergy3 to monitor the level of fluid in your tank. It's made from stainless steel for resistance to impact and corrosion, making it a reliable choice for use in demanding environments. A robust nitrile gasket seal prevents leaks to ensure efficient operation. Thanks to its broad operating temperature range of -20°C to +135°C, this float switch is suitable for use in cold and hot environments. You'll find float switches like this one used in applications such as food and beverage processing.

Features & Benefits

• Low current consumption of 600mA for energy-efficient operation
• Maximum operating pressure of 10 bar for use in high-pressure applications
• 4-pin M12 connector for a simple electrical connection
• Compact length of 102mm for use in tanks where space is limited

How do I install this vertical float switch?

A vertical float switch like this unit is designed for mounting at the top or bottom of a tank, making it a good choice for tanks where there's no side access. You can install it using screws for a simple and secure attachment.

SSF67PM12 Series Dual Switch Point Datasheet
