SSF67A25B150PM12, Sensata / Cynergy3 Sensata/Cynergy 3 SSF67PM12 Series Vertical Stainless Steel Float Switch, Float, NO/NC, 250V ac Max, 120V dc Max

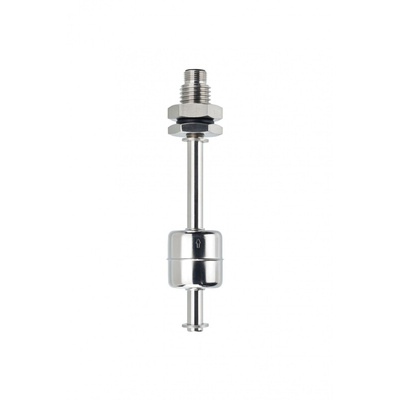

Sensata Cynergy3 Vertical Float Switch, 10 Bar, 177mm Length - SSF67PM12 Series - SSF67A25B150PM12

This float switch from Sensata Cynergy3 monitors the flow of liquid in your tank to prevent overfilling and underfilling. Its vertical design means you can mount it at the top or bottom of the tank, so there's no need for side access. As it has a broad operating temperature range of -20°C to +135°C, it's a good choice for use in demanding environments. A maximum pressure rating of 10 bar makes it suitable for use in high-pressure applications. Use this switch for fluid control in water management facilities and chemical processing plants.

Features & Benefits

• Nitrile gasket seal to prevent leaks
• Maximum current of 600mA for energy efficiency
• Stainless steel body is resistant to impact and corrosion for a long service life

How does a vertical float switch work?

This vertical switch is divided into two parts: the stem and the float. While the stem remains in a fixed position at the top or bottom of the tank, the float rests on top of the liquid and rises or falls with fluid levels. The unit has an internal sensor that triggers the opening or closing of a connected fluid supply device when the liquid reaches preset levels.

SSF67PM12 Series Dual Switch Point Datasheet
