SSF67A25B175PM12, Sensata / Cynergy3 SSF67PM12 Series Vertical Stainless Steel Float Switch, Float, NO/NC, 250V ac Max, 120V dc Max

SSF67PM12 Series Level Float

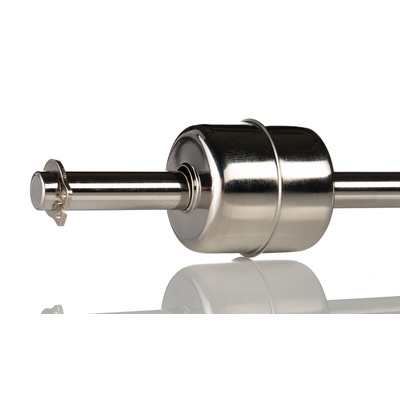

These SSF67 series floats from Cynergy 3 have been designed to provide different switching options with a longer reach float. The float is made with stainless steel 316L making it suitable to use with aggressive liquids and in applications where hygiene is an important consideration. The float will provide an indication for high and low levels which can be used for alarms and control systems.

Single or dual switching levels
M16 mounting thread

Sensata Cynergy3 Float Switch, Vertical Mounting Type, 600mA Maximum Switching Current - SSF67PM12 Series - SSF67A25B175PM12

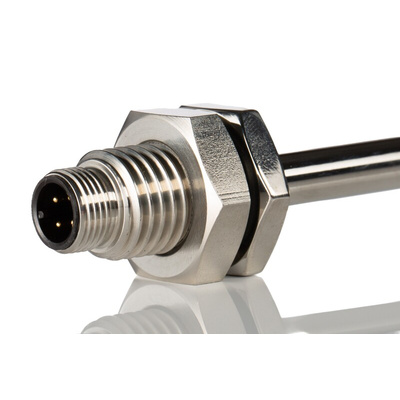

Need accurate control over fluid levels when emptying or filling a tank? Choose this dual-level float switch from Sensata Cynergy3. As it's manufactured from 316L-grade stainless steel, it's resistant to corrosion and wear for use in harsh environments. Its M12 4-pin connector has an IP67 rating, meaning it's dust-tight and protected against submersion in 1m of water for up to 30 minutes. The switch's sealing gasket is made of nitrile rubber, which is resistant to oil and moisture for a long-lasting seal. You can use this float switch in applications such as vending machines and evaporators.

Features & Benefits

• Offers both NO and NC operation for flexibility
• Wide operating temperature range of -20°C to +135°C for use in challenging environments
• Maximum pressure of 10 bar for use in high-pressure systems

How do I mount this float switch?

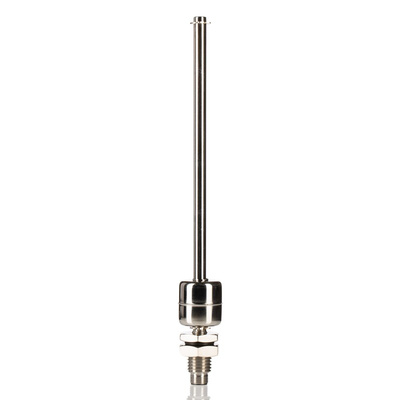

This float switch is designed for vertical mounting on the inside of your tank. Thanks to its M16 x 2 thread, it's easy to secure in place without the need for complex tools.

SSF67PM12 Series Dual Switch Point Datasheet

Selection Guide - Level Sensors & Switches
