SSF67A25B250PM12, Sensata / Cynergy3 Sensata/Cynergy 3 SSF67PM12 Series Vertical Stainless Steel Float Switch, Float, NO/NC, 250V ac Max, 120V dc Max

SSF67PM12 Series Level Float

These SSF67 series floats from Cynergy 3 have been designed to provide different switching options with a longer reach float. The float is made with stainless steel 316L making it suitable to use with aggressive liquids and in applications where hygiene is an important consideration. The float will provide an indication for high and low levels which can be used for alarms and control systems.

Single or dual switching levels
M16 mounting thread

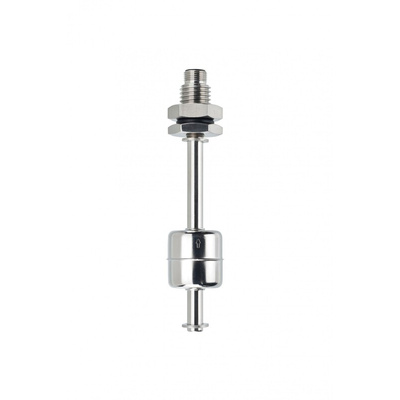

Sensata Cynergy3 Vertical Float Switch, 10 Bar, 277mm Length - SSF67PM12 Series - SSF67A25B250PM12

Manage the level of liquid in your tank using this vertical float switch from Sensata Cynergy3. It's made from a tough stainless steel material for resistance to impact and corrosion. A maximum operating pressure of 10 bar makes it suitable for use in high-pressure applications. Thanks to its wide operating temperature range between -20°C and +135°C, it's suitable for use in demanding environments. This float switch is commonly used in chemical plants as well as food and beverage production.

Features & Benefits

• Nitrile gasket seal is resistant to oils and chemicals for a durable seal
• Built-in M12 4-pin connector for quick setup
• Maximum switching current of 600mA for energy-efficient operation

How does this float switch work?

This vertical switch comes with a float and a stem. You can fix the stem at the top or bottom of your tank with the floating element resting on the surface of the fluid. When the fluid drops below or rises above the preset level, the internal switch is activated, causing the attached pump to open or close.

SSF67PM12 Series Dual Switch Point Datasheet
