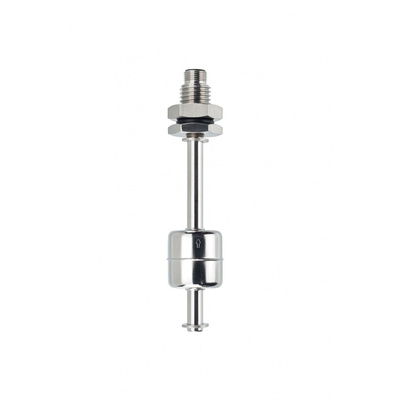

SSF67A50A250PM12, Sensata / Cynergy3 SSF67PM12 Series Vertical Stainless Steel Float Switch, Float, 2NO, 250V ac Max, 120V dc Max

SSF67PM12 Series Level Float

These SSF67 series floats from Cynergy 3 have been designed to provide different switching options with a longer reach float. The float is made with stainless steel 316L making it suitable to use with aggressive liquids and in applications where hygiene is an important consideration. The float will provide an indication for high and low levels which can be used for alarms and control systems.

Single or dual switching levels
M16 mounting thread

Sensata Cynergy3 Vertical Float Switch, 2NO, 10 Bar - SSF67PM12 Series - SSF67A50A250PM12

You can install this Sensata Cynergy3 float switch in tanks, wells or containers to monitor liquid levels effectively and control emptying. Its actuator moves up and down with fluid levels, triggering the sensor to open or close its contacts. The component's durable stainless steel body is corrosion-resistant for reliable performance in harsh liquids. Its nitrile gasket is wear-resistant and ensures a tight seal to prevent leaks. You'll commonly find switches like this used in food processing machinery and chemical storage tanks.

Features & Benefits

• Wide operating temperature range of -20°C to +135°C for use in demanding environments
• Maximum switching current of 600mA for energy-efficient operation
• Extra-long stem for flexible use
• M16 mounting thread for a simple and secure attachment to a tank

How can I connect this product to my circuitry?

The switch comes with an M12 4-pin connector for easy connection to compatible electrical devices.

How much pressure can this product handle?

The switch has a maximum pressure rating of 10 bar, so it's suitable for use in demanding high-pressure applications.

SSF67PM12 Series Dual Switch Point Datasheet

Information Sheet - Level Sensors & Switches

Selection Guide - Level Sensors & Switches
