SSF67B50B100PM12, Sensata / Cynergy3 Sensata / Cynergy 3 SSF67PM12 Series Vertical Stainless Steel Float Switch, Float, 2NC, 250V ac Max, 120V dc Max

SSF67PM12 Series Level Float

These SSF67 series floats from Cynergy 3 have been designed to provide different switching options with a longer reach float. The float is made with stainless steel 316L making it suitable to use with aggressive liquids and in applications where hygiene is an important consideration. The float will provide an indication for high and low levels which can be used for alarms and control systems.

Single or dual switching levels
M16 mounting thread

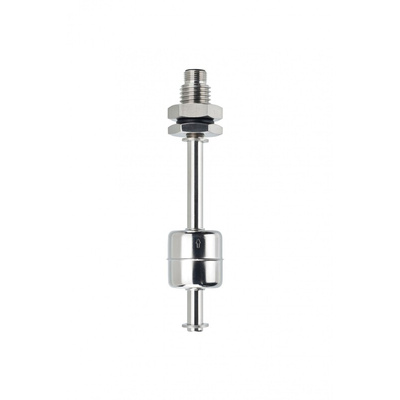

Sensata Cynergy3 Vertical Float Switch, 10 Bar, 127mm Length - SSF67PM12 Series - SSF67B50B100PM12

Achieve precise control over the liquid levels in your application with this float switch from Sensata Cynergy3. Its two NC contacts work with a reed switch to control a circuit as the liquid level changes to automatically prevent overfilling. As it's a vertical float switch, it's designed for mounting at the top or bottom of your container for use in applications where there's no side access to the tank. You'll commonly find this float switch used in food and beverage production.

Features & Benefits

• Hard-wearing nitrile gasket ensures a tight seal to prevent leakage
• M12 4-pin plug for ease of connection to a power source
• Maximum operating pressure of 10 bar for use in heavy-duty applications

Can I use this float switch in extreme temperatures?

Yes, this float switch has a wide operating temperature range of -20°C to +135°C, so it can withstand use in demanding conditions.

What material is this float switch made of?

This float switch is made of a durable stainless steel material that's resistant to corrosion and wear, making it a long-lasting choice.

SSF67PM12 Series Dual Switch Point Datasheet
