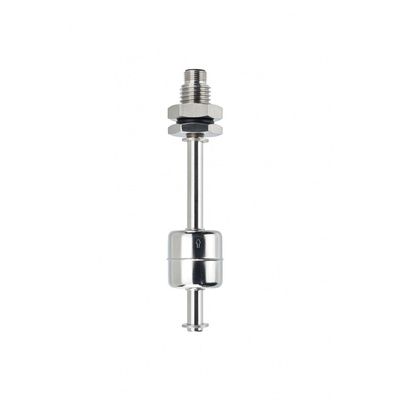

SSF67B50B150PM12, Sensata / Cynergy3 SSF67PM12 Series Vertical Stainless Steel Float Switch, 2NC, 250V ac Max, 120V dc Max

SSF67PM12 Series Level Float

These SSF67 series floats from Cynergy 3 have been designed to provide different switching options with a longer reach float. The float is made with stainless steel 316L making it suitable to use with aggressive liquids and in applications where hygiene is an important consideration. The float will provide an indication for high and low levels which can be used for alarms and control systems.

Single or dual switching levels
M16 mounting thread

Sensata Cynergy3 Float Switch, 600mA Maximum Switching Current, Vertical Mounting Type - SSF67PM12 Series - SSF67B50B150PM12

Looking for a way to automate and control the filling of your industrial tanks? Choose this float switch from Sensata Cynergy3. You can use this switch with liquids that have a minimum specific gravity of 0.8, so it's compatible with water, oils and alcohol for versatility. Thanks to its stainless steel construction, it's resistant to corrosion for durability in harsh environments. It's also easy to clean, so it's a good choice for use in hygienic settings. It can withstand up to 10 bar of pressure, making it suitable for use in heavy-duty applications. You'll find this float switch used in applications such as sewage treatment plants.

Features & Benefits

• M12 4-pin connector for quick connection to control circuits
• Overall length of 177mm for a long reach in deep tanks
• Nitrile gasket provides a tight seal to prevent leaks for optimal performance

How do I mount this float switch?

This float switch is designed for vertical mounting on the inside of the tank. It has two M16 threads for a simple and secure attachment to your tank wall.

SSF67PM12 Series Dual Switch Point Datasheet

Selection Guide - Level Sensors & Switches
