FSV10AR06, Sensata / Cynergy3 FSV10AR Series Vertical Stainless Steel Float Switch, Float, Relay, 250V ac Max

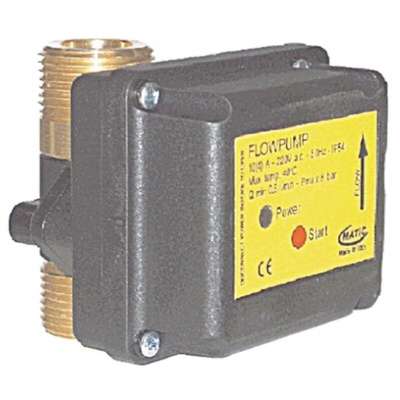

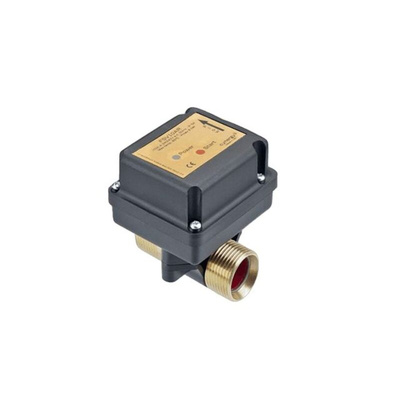

FSV10AR Inline Flow Switch

The FSV10AR inline flow switch is time delay adjustable and also operational once the flow rate exceeds a certain level. (See datasheet for the start up flow rate - start up flow rate is dependant on the model chosen)
This pump can be used to control a pump via a relay output and should be fitted about the pump.

Designed for G1" Pipe
Automatic stop when the flow stops

Sensata Cynergy3 Flow Switch, 24V AC Maximum Switching Voltage, 4A Maximum Inductive Load - FSV10AR Series - FSV10AR06

Reliably monitor fluid levels in your system with this inline flow switch from Sensata Cynergy3. When the flow rate in a vertical pipe exceeds 0.6L/min, it sends a signal to a pump or other control mechanism to keep liquid levels in safe operating limits. To avoid sudden pressure changes, an adjustable time delay function lets you keep the pump running for up to 10 seconds after the flow rate returns to normal.

Features & Benefits

• Brass flow tube is resistant to corrosion and wear
• Wide operating temperature range of -20°C to +85°C for use in challenging environments
• Maximum pressure of 8 bar for use in high-pressure systems

How do I install this switch?

Inline flow switches are designed for permanent installation in a system. This device should be mounted on a straight section of pipe or duct, ideally with a length of at least 10 times the pipe's diameter on either side. As switch operation relies on the flow of liquid working in opposition to gravity, it's suitable for use with vertical pipes only.

FSV10AR Inline Flow Switch Datasheet
