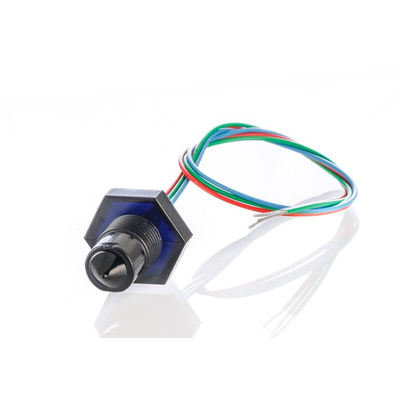

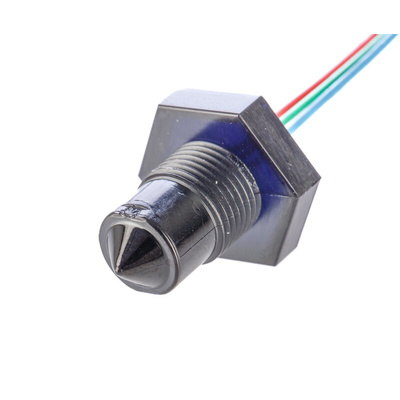

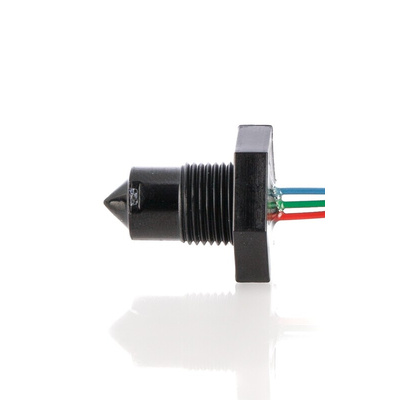

OLS200D3SH, Cynergy3 OLS2 Series, Optical Sensor Level Switch Transistor Output

Cynergy3 Liquid Level Sensor

The Cynergy3 liquid level sensor is for single point level detection. This sensor has an infrared emitter and detector aligned within an accurately shaped cone to give good optical coupling when the sensor is in the air. This coupling is greatly reduced when the sensor is immersed in liquid, as the infrared light escapes through the liquid rather than being reflected in the detector. This sensor has a transistor output, so can be configured by the user for particular applications. Its supply voltage ranges between 5VDC and 15VDC. It is used in industries.

Features and Benefits

Output is via TTL compatible push pull output
Affordable sensor for general liquid sensing
High reliability optical sensing
Cable length of 250mm
Maximum current of 100mA
Internal mount via M12x1 thread
High output versions
Maximum pressure is 20bar
Chassis mount

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
