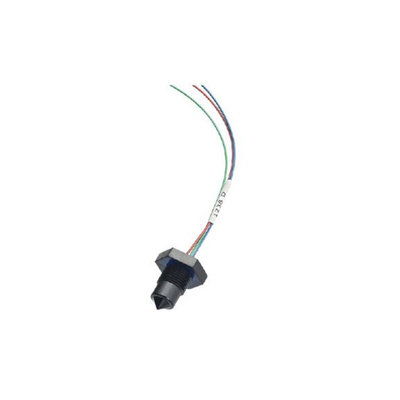

OLS200D3LSH, Sensata / Cynergy3 OLS2 Series Optical Sensor Level Sensor, Transistor Output, Chassis Mount, Polysulfone Body

Sensata Cynergy3 Optical Sensor Level Switch, Transistor Output - OLS2 Series - OLS200D3LSH

Use this optical sensor level switch from Sensata Cynergy3's OLS2 series for liquid detection in your industrial systems. It has an infrared emitter and a phototransistor, both of which are aligned with a cone. Upon contact with a liquid, the coupling is reduced as the infrared light escapes due to refraction. The body material is made from polysulfone, a durable material that's resistant to degradation from hot liquids. This device is useful in a variety of applications from dry pump protection to leak detection.

Features and Benefits

• Cable length of 250mm for access to hard to reach areas
• Operating temperature range of -25°C to +80°C makes it suitable for use in extreme environments
• Compact design for space efficiency

How do I install this sensor?

This sensor can be installed on either the side or bottom of a tank, but not at the top facing downwards. Drill a 12mm hole on a flat surface, making sure it's free of burrs to prevent leakage. You can then either insert the device into the hole or screw it into an M12x1 socket.

OLS2 Series Liquid Level Sensor Datasheet

Selection Guide - Level Sensors & Switches
