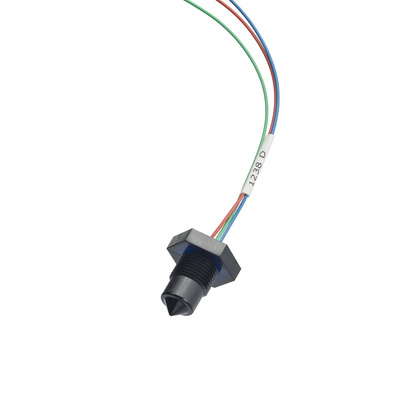

OLS710D3L24-003, Sensata / Cynergy3 Sensata/Cynergy 3 OLS7 Series Optical Sensor Level Switch, Transistor Output, Chassis Mount, Polysulfone Body

OLS7 Optical Liquid Level Sensor

The OLS7 optical liquid level sensor designed for single point liquid measurement. Transistor output in this model means that the user can configure this to meet individual requirements.

External mounting with 1/4"NPT thread
Maximum pressure 7bar

Sensata Cynergy3 Level Switch, Optical Sensor Type, 7 Bar Maximum Pressure - OLS7 Series - OLS710D3L24-003

Use this optical sensor level switch from Sensata Cynergy3 to detect when liquid in a tank reaches a predetermined level. The unit is protected against false triggering caused by foam, so you can rely on it for accurate results. Its polysulfone body is resistant to heat, and it has a broad operating temperature range of -40°C to +125°C for use in harsh environments. An optical liquid level sensor like this one is commonly used in general applications, such as vending machines.

Features & Benefits

• Tinned copper wire for high conductivity and a reliable electrical connection
• PTFE cable jacket for resistance to abrasion and wear
• Supply voltage range of 10 to 28V DC for use in low-power applications

Where should I mount this optical sensor level switch?

This sensor is designed for mounting on the exterior of the tank, so there's no need to access the inside. You can mount it on either the side or bottom of the tank for flexible installation. The device shouldn't be mounted on the top of the tank with the cone facing downwards.
