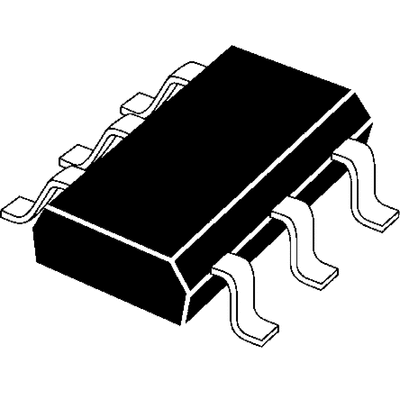

NTJD1155LT1G, Dual N/P-Channel-Channel MOSFET, 1.3 A, 8 V, 6-Pin SOT-363 onsemi NTJD1155LG, МОП-транзистор

Dual N/P-Channel MOSFET, ON Semiconductor

The NTJD1155L is a dual channel MOSFET. Featuring both P and N-channel’s into a single package, this MOSFET is brilliant for low control signal, low battery voltages and high load currents. The N-channel features internal ESD protection and can be driven by logic signals as low as 1.5V, while the P-Channel is designed to be used on load switching applications. The P-channel also designed with ON semi’s trench technology.

Features and Benefits:

•\tESD Protection
•\tUltra-low Rds P-Channel load switch
•\tV range of 1.8 – 8.0V
•\tON/OFF Range – 1.5 to 8.0V
•\tSOT 363 package
•\tDrive loads up to 1.3A with 8V.

Applications:

•\tHigh side load switch with level shift
•\tMobile phones
•\tDigital cameras
•\tPDA’s
•\tMedia Players
