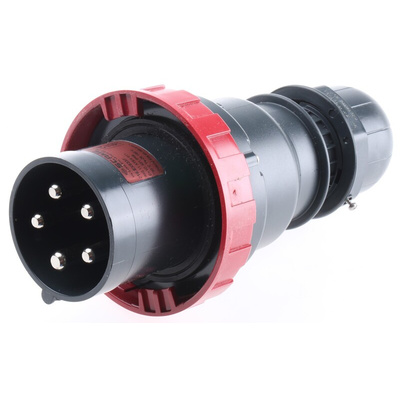

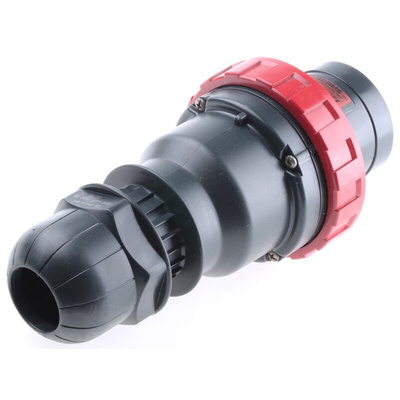

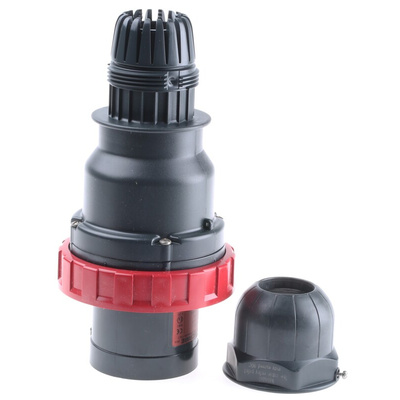

218.EX6337, Scame IP66 Red Cable Mount 3P + N + E Industrial Power Plug, Rated At 64A, 415 V, Разъем питания

7800816
Номер производителя: 218.EX6337Производитель: Scame
Цена за шт.
39791.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ATEX Industrial Power Cable Mount Connector Plugs

A comprehensive range of ATEX directive rated industrial cable mount plugs in 16A, 32A and 63A current ratings, these hardwearing and durable industrial connector plugs are very quick to wire and assemble, with halogen free polymer and nickel plated screw terminal contacts. These ATEX rated connector plugs are IP66 rated with very secure cable glands they are suitable for use within very harsh environments with a high risk of explosions, used in conjunction with the ATEX switched interlocked power outlet sockets also available in this range.

IP66 rated
Ambient temperature -25 to +60 degrees C
Glow wire test 850/960 deg C
Self extinguishing UL94 5VA
Insulating voltage 500/690V

Note

For typical mating sockets see typically: 780-0747 , 780-0762 , 780-0778

Техническая спецификация
pdf218.EX6337 Datasheet
