1873074, Phoenix Contact 5.08mm Pitch 4 Way Pluggable Terminal Block, Plug, Cable Mount, Plug In, Spring Cage Termination

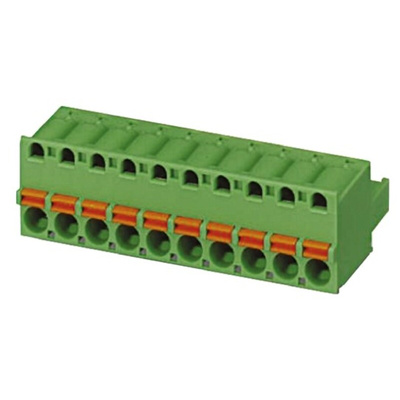

Phoenix Contact CLASSIC COMBICON FKC 5.08mm Terminal Block Plug Connectors

From Phoenix Contact, a range of PCB connectors that boast an effortless push-in, spring-cage connection with defined contact force so the connection remains stable of the long term. These FKC PCB connectors are super-easy to use thanks to the plug-in connection style. Not only does this mean you save time screwing down wires, it makes for a tool-less installation. They're rated at a nominal current of 12 A and a nominal voltage of 630 V.
These FKC connectors are double-level and provide you with a high-contact density and easy colour coded actuation levers help you easily manage your connection.

Features and benefits:

• Effortless push-in spring cage connections meaning no tools are required


• A defined contact force allows your connection to stay stable over a long period


• 5.08mm Pitch


• Operation and conductor connection from one direction enable integration into front of device

For ferrules see stock numbers: 804-6912 and 804-6916
For ferrule crimping pliers see stock number: 803-4405

Phoenix Contact Push-In Spring Cage Terminal Block, 4-way - FKC 2,5/ 4-ST-5,08 - 1873074

This 4-way PCB (printed circuit board) terminal block from Phoenix Contact is used to quickly and efficiently link wires and components across PCBs. It's a modular, insulated device, and it can be mounted directly on the PCB board. Its push-in, spring-cage connection enables a simple installation that's easy to undo or adjust if necessary, without the need for any tools.
The green polyamide material used for this terminal block's housing offers good insulation, which increases the reliability of your circuits and reduces the risk of electric shocks. Certification of 94 V-0 for flame resistance from UL (Underwriters Laboratories) indicates that it will burn for no more than 10 seconds when exposed to a naked flame.
This product is suitable for circuit boards in computers, TVs and other everyday electronic devices, as well as industrial equipment.

• 4 contacts
• Single row
• Straight body orientation
• Screw termination method
• Cable mounting type
• Plug type
• Current rating of 12 A
• Voltage rating of 630 V
• Depth of 15 mm
• Width of 25.6 mm
• Pitch of 5.08 mm
• Female gender
• Weight of 6.91 g
