1873113, Phoenix Contact 5.08mm Pitch 8 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact CLASSIC COMBICON FKC 5.08mm Terminal Block Plug Connectors

From Phoenix Contact, a range of PCB connectors that boast an effortless push-in, spring-cage connection with defined contact force so the connection remains stable of the long term. These FKC PCB connectors are super-easy to use thanks to the plug-in connection style. Not only does this mean you save time screwing down wires, it makes for a tool-less installation. They're rated at a nominal current of 12 A and a nominal voltage of 630 V.
These FKC connectors are double-level and provide you with a high-contact density and easy colour coded actuation levers help you easily manage your connection.

Features and benefits:

• Effortless push-in spring cage connections meaning no tools are required


• A defined contact force allows your connection to stay stable over a long period


• 5.08mm Pitch


• Operation and conductor connection from one direction enable integration into front of device

For ferrules see stock numbers: 804-6912 and 804-6916
For ferrule crimping pliers see stock number: 803-4405

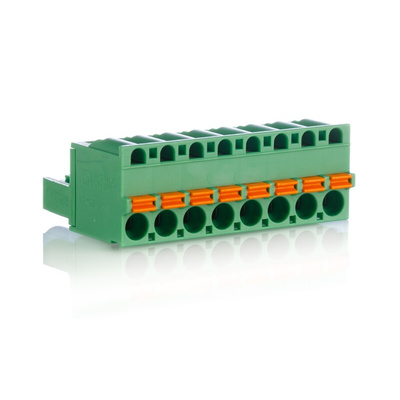

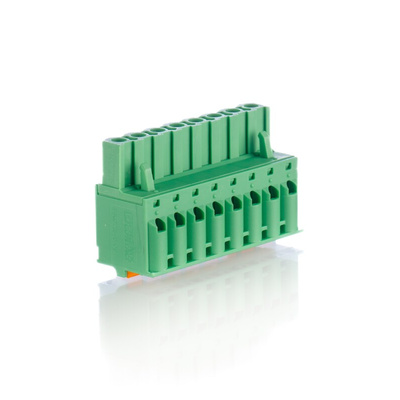

Phoenix Contact 8-Pin Pluggable Terminal Block, 5.08mm Pitch, 1 Row - FKC 2.5/8-ST-5.08 - 1873113

Use this pluggable terminal block from Phoenix Contact to supply power and data to components attached to your printed circuit board (PCBs). It has colour-coded terminals that allow you to easily identify your connectors, saving you time.
The terminal block is made of polyamide (PA) housing material that has superior strength and impact resistance, so it won't warp under pressure. This material also has strong insulation properties, so it serves the dual purpose of protecting you from the risk of an electric shock.
The component has a spacing of 5.08mm between its poles to prevent accidental contact and short circuits, for electrical safety. It features a spring-cage connection that allows for easy termination of cables without the need for tools. This feature also makes for a secure link that can withstand vibration, so you can use it in harsh environments. Terminal blocks like this one are often found in household electronics and personal computers.

Features & Benefits

• Rated surge voltage of 4kV to withstand sudden spikes, for electrical safety
• UL94V-0 (Underwriters' Laboratory) flammability rating for fire safety
• Light weight of 13.6g for easy handling

FKC 2,5/ 8-ST-5,08 COMBICON Push-in Spring-cage Terminal Block - Datasheet
