E5AC-RX4A5M-000, Omron E5AC PID Temperature Controller, 96 x 96mm, 1 Output Relay, 100 → 240 V ac Supply Voltage, Регулятор температуры

Omron Temperature Controller

The Omron E5AC series temperature controller has a one control relay output, four auxiliary outputs and universal input. This controller has a width of 96mm and a height of 96mm. This controller is a set of new global standard in the crucial areas of precision, user-friendliness and control performance. It has an operating supply of 100VAC to 240VAC. This series will save you time and effort in set-up and operation while enabling faster and more accurate monitoring/control of your process. The high-visibility display of the new series is also extremely easy to read and virtually eliminates any possibility for human error.

Features and Benefits

Easy to set up and operate intuitively via CX-Thermo without power supply
Functions for diagnosis for secure operations

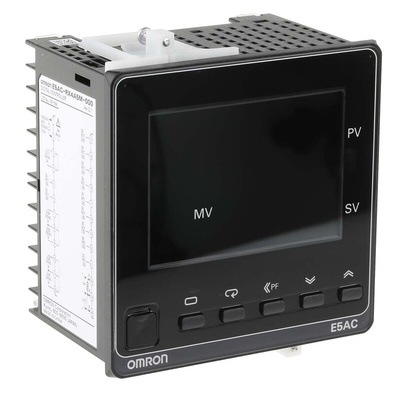

High-contrast, white LCD display visible from large distances and from any angle
High-speed sampling at 50ms

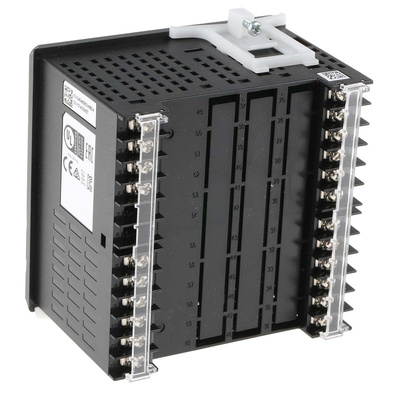

Screw terminal
Short body with depth of only 60mm
Tool ports are provided both on the top panel and the front panel
Useful timer and logic operation functions eliminating the need of a PLC

Certifications

IP00 rated
IP20 rated
IP66 rated

Datasheet
