Tektronix TCP Series TCP0030A Oscilloscope Probe, Current Type, ≥ 120MHz, BNC Connector - ASIC, Щупы для осциллографа

Tektronix Oscilloscope Probes

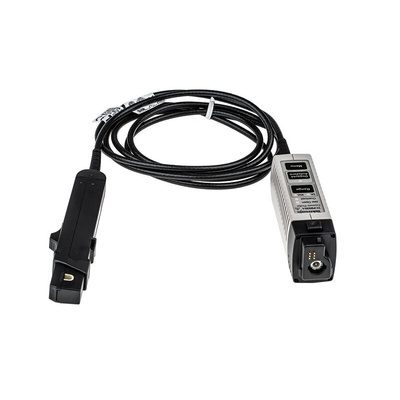

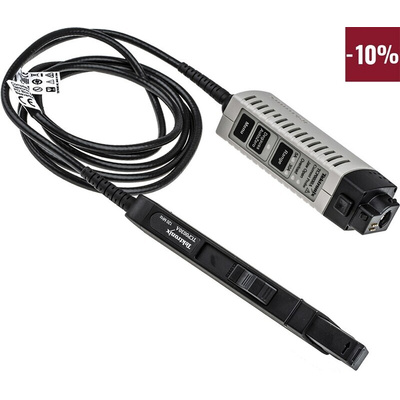

The TCP0030A Tektronix current oscilloscope probe is designed for direct connection to oscilloscopes with the probe interface. This easy-to-use AC/DC current measurement probe provides bandwidth greater than 120MHz with selectable 5A and 30A measurement ranges. It also provides exceptional low current measurement capability and accuracy to current levels as low as 1mA. The probe combines Hall-effect technology with the Tektronix TekVPI oscilloscope interface.

Features and Benefits

Bandwidth is DC to 120MHz
AC/DC measurement capability
5A and 30A range settings
Rise time is 2.92ns
Maximum DC and RMS current is 30A
Maximum peak pulse voltage 50A
Maximum Input voltage is 150V CAT II (insulated wire 300 V CAT II)

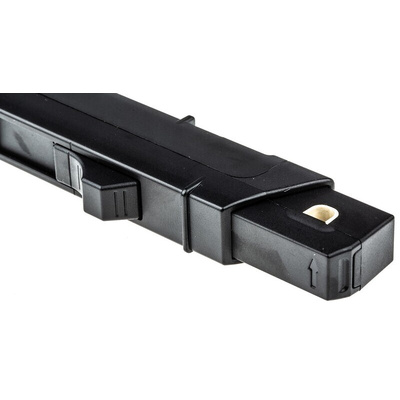

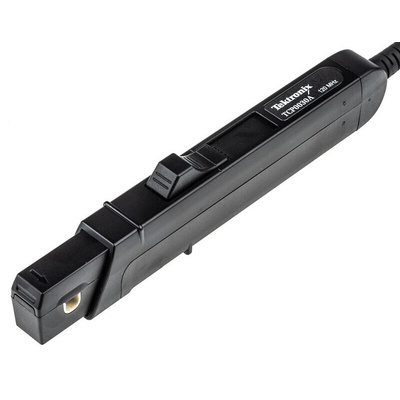

Split-core construction allows easy circuit connection
Typically less than 1% DC gain error
Low noise and DC drift

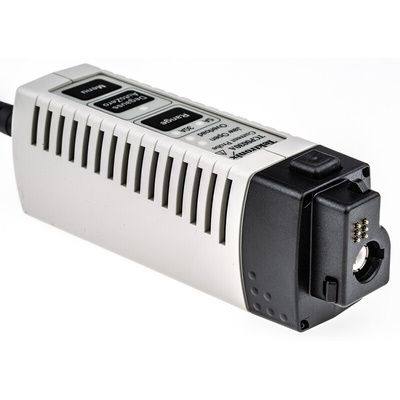

One button degauss/autozeroing - easy Degauss and Autozero set-up controls and probe status/diagnostic indicators on probe hardware and via oscilloscope UI display menu
Probe head (LxWxH) – 200x16x32 mm
Cable length – 200 cm
Maximum conductor size – 5 mm

Intelligent communication with TekVPI™ oscilloscopes provides:
- Units scaling and readout. Automatic, on-screen readout of amps and magnitude. Manual set-up is not required Hand calculation from volts to amps is unnecessary
- Push button degauss and Autozero functionality
- Probe status and diagnostic indicator LEDs
- Remote GPIB/USB probe control

Applications

Power supply design
Design motor drive
Electronic ballast
Power semiconductors
Switch mode control
UPS systems
Power converters
Mobile communications
Motor drives
Industrial/consumer electronics

Certifications

CE compliant
WEEE compliant
