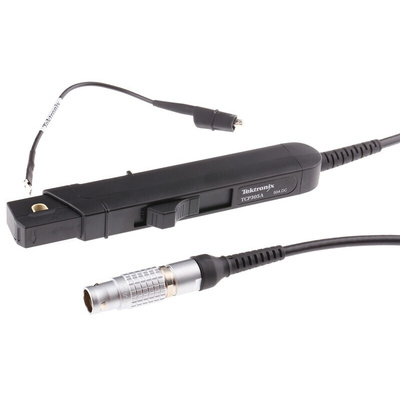

Tektronix TCP300 Series TCP305A Oscilloscope Probe, Current Type, 50MHz, BNC Connector, Щупы для осциллографа

Tektronix Oscilloscope Probes

The Tektronix current oscilloscope probe offers current measurement capabilities of 50DC continuous. The amplifier, when used with Tektronix provides a wide range of current measurement capability and spans the gap between low-level milliamp measurements to very high current levels. The oscilloscope onscreen readout of magnitude and amps reduces measurement errors with no more hand calculations.
Note:
Requires TCPA300 amplifier available separately

Features and Benefits

Bandwidth is DC to 50MHz
Lowest measurable current is 5mA
Insertion impedance is 0.35ohm at 50MHz
Rise time is 7ns
Typically less than 1% DC gain error
Bare insulated maximum wire voltage is 150V CAT II and 300V CAT II
Low insertion impedance reduces device under test loading

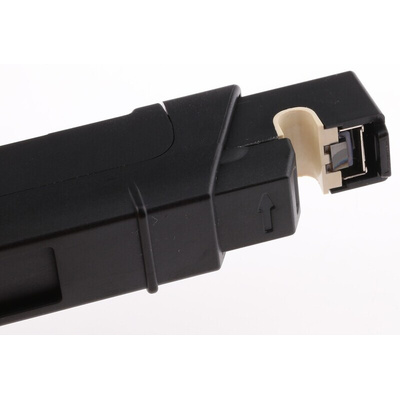

Split-core construction allows easy circuit connection
Status indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50 ohm
Low DC drift and noise allows improved low level current measurements

Applications

Development and analysis solutions for designers
Installers and service personnel in telecom data communication
Computers
Semiconductor power electronics environments

Certifications

UL61010-2-032 approved
UL61010-1 approved
CAN/CSA C22.2 No 61010-1 certified
CAN/CSA C22.2 No 61010-2-032 certified
EN61010-1
EN61010-2-032
CAT II 150V
CAT II 300V

TCPA300, TCP312A, TCP305A, TCP303, TCPA400, TCP404XL AC/DC Current Measurement Systems Data Sheet
