Tektronix P6021A Current Probe, Щупы для осциллографа

Tektronix Oscilloscope Probes

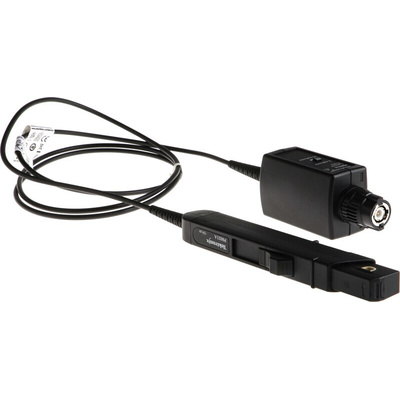

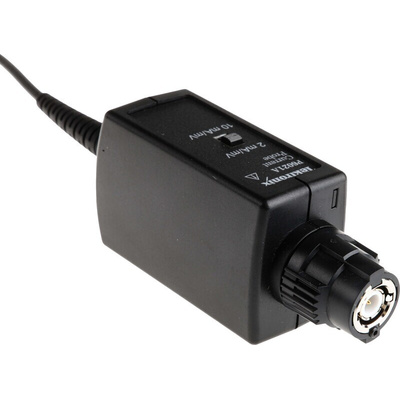

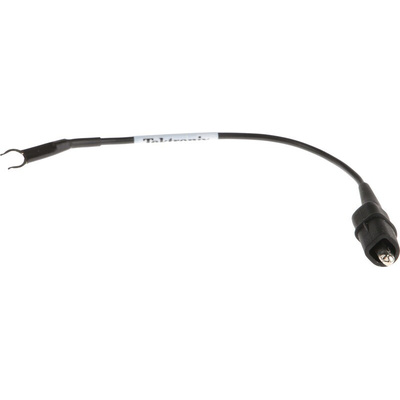

The Tektronix 120AC current oscilloscope probe offers accurate current measurements over a wide range of frequencies. It allows current measurements without breaking the circuit by clipping onto the current-carrying conductor. The shielded probe head is not grounded when the slides are in their open positions, eliminating accidental grounding of the circuit under test. The probe range is switchable between 2mA/mV and 10mA/mV.

Features and Benefits

Bandwidth range is between 120Hz to 60MHz
Input impedance is 1Mohm
10.6Amp RMS, 250A peak, 10mAmp sensitivity
Cable length is 1.5m
Split core construction facilitates circuit connection
Clips on to current-carrying conductor (i. e. does not break the circuit)
Shielded probe head (200x16x32mm) eliminates accidental grounding of a circuit under test

Applications

Motor drives
Power inverters/converters
Power supplies
Avionics

Certifications

UL61010-2-032 approved
UL61010-1 approved
CAN/CSA C22.2 No 61010-1 certified
CAN/CSA C22.2 No 61010-2-032 certified
EN61010-1
EN61010-2-032

P6021A & P6022 AC Current Probes Data Sheet
