518.1650T, Scame IP66, IP67 Yellow Wall Mount 2P + E Industrial Power Socket, Rated At 16A, 110 V, Разъем питания

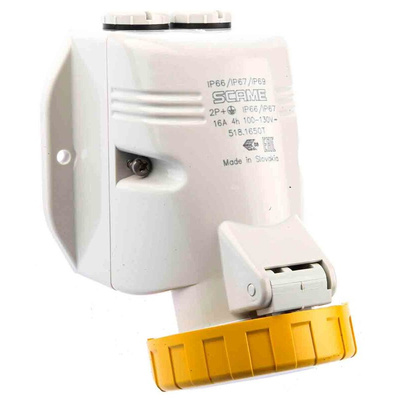

Scame IP66, IP67 Yellow Wall Mount 2P+E Industrial Power Socket, Rated at 16.0 A, 110.0 V

This 2-pin plus earth power socket from Scame is a practical choice for heavy-duty industrial settings. It comes with hardwearing screw terminals and nickel-plated pins and is encased in special halogen-free engineering plastic that's less likely to emit toxic gases during a fire. Its IP66 and IP67 ratings mean it's certified to keep out dust and won't break if submerged in water.

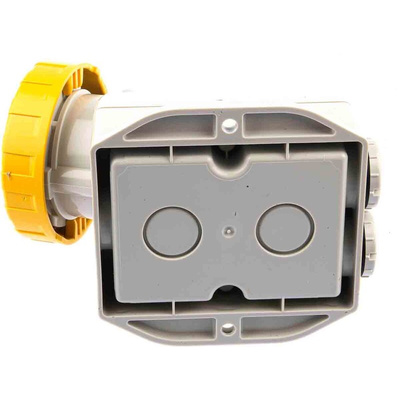

The wall-mount outlet socket has threaded knockouts that accept 2 x M20 to 3 x M25 cable glands. It's rated 110 V for voltage and 16 A for current, with an insulation resistance of 500/690 V. The socket can operate safely at temperatures between -25˚C and +40˚C.

A quality Scame product, the power connector has been stringently tested for safety. It conforms to European standards EN 60309-1 and EN 60309-2 for sockets suitable for industrial use and Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.

Features and Benefits

• Industrial power connector
• Suitable for wall mounting
• Screw termination

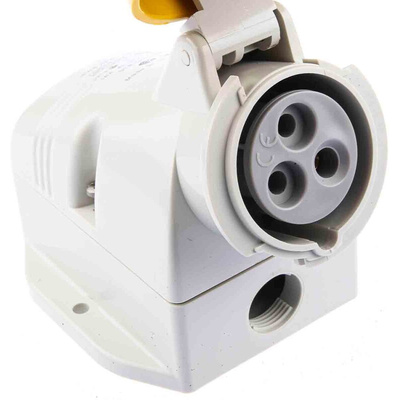

• IEC309-type 2-pin plus earth female socket
• Nickel-plated pins
• Housing made from halogen-free engineering plastic polymer
• Voltage rating of 110 V
• Current rating of 16 A
• IP66/67 rated as dust-tight
• Operating temperature range of -25˚C to +40˚C
• Meets European safety standards EN60309-1 and EN60309-2 for plugs, socket-outlets and couplers for industrial purposes

518.1650T Datasheet
