2450, Keithley 2400 Series Source Meter, ±20 mV → ±200 V, 1-Channel, ±10 nA → ±1 A, 20 W Output, Источник-измеритель

Keithley 2450 Graphical Source Measure Unit (SMU), 200V 1A, 20W Output, Programmable

The 2450 is the fourth-generation member of Keithley’s award-winning SourceMeter® family of SMU instruments.
It offers a highly flexible, four-quadrant voltage and current source/load coupled with precision voltage and current meters. The 2450 is the SMU for everyone: a versatile instrument, particularly well-suited for characterizing modern scaled semiconductors, nano-scale devices and materials, organic semiconductors, printed electronics, and other small-geometry and low-power devices. All this combined with Keithley SMU precision and accuracy allows users to Touch, Test, Invent® with the new favourite go-to instrument in the lab for years to come.

Features and Benefits

• Capabilities of analysers, curve tracers, and I-V systems at a fraction of their cost

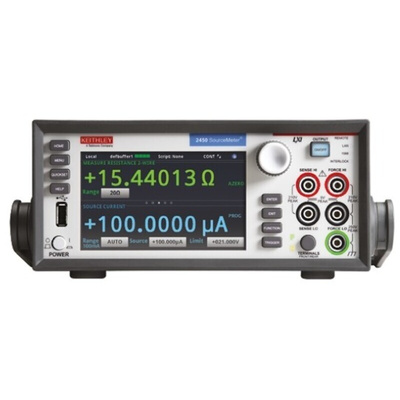

• Five-inch, high resolution capacitive touchscreen GUI
• 0.012% basic measure accuracy with 6-digit resolution
• Enhanced sensitivity with new 20mV and 10nA source/measure ranges
• Source and sink (four-quadrant) operation
• Four “Quickset” modes for fast setup and measurements
• Built-in, context-sensitive front panel help
• Front panel input banana jacks

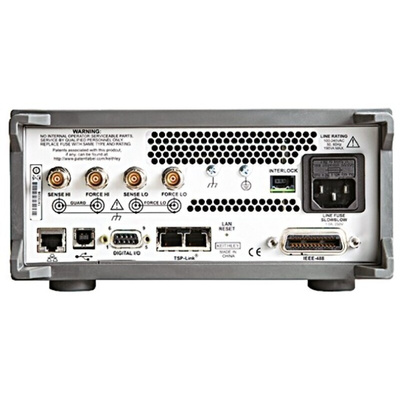

rear panel input triaxial connections
• 2450 SCPI and TSP® scripting programming modes
• 2400 SCPI-compatible programming mode
• Front panel USB memory port for storing data, programming, instrument configurations, and to upgrade the unit

Accessories

SMU Accessories
Test Leads and Probes:
RS Stock No. 2409949 5804 (Kelvin 4-wire 10 piece lead kit)
RS Stock No. 2409950 5805-12 (Kelvin 4-wire Spring Loaded Probes)
RS Stock No. 2409951 5808 (Single Pin Kelvin Probes)

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Cable and Interface Accessories
RS Stock No. 7600329 7078-TRX-1 (3-slot low noise Triax Cable)
RS Stock No. 7600323 7078-TRX-3 (3-slot low noise Triax Cable)
RS Stock No. 7600332 7078-TRX-5 (3-slot low noise Triax Cable)
RS Stock No. 7600335 7078-TRX-10 (3-slot low noise Triax Cable)
RS Stock No. 7600348 7078-TRX-GND (3-slot male triax to BNC adapter, guard removed)
RS Stock No. 7600339 7078-TRX-BNC (Coaxial adapter)
RS Stock No. 8470093 7007-1 (Shielded GPIB cable)
RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)

Software Updates

KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Applications

Automotive
Battery Testing
Embedded Design
Power Measurements and Analysis
Education
Manufacturing test/troubleshooting
