Displaytech DT024CTFT-TS TFT LCD Colour Display / Touch Screen, 2.4in QVGA, 240 x 320pixels, Дисплей

Displaytech TFT LCD Display Modules

Displaytech's TFT LCD display modules are designed to combine performance with value. These reliable TFT LCD modules are suitable for a wide variety of industrial, medical and consumer applications. The driver ICs are mounted directly on to the glass and are as follows:
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.

• Transmissive TFT LCD display modules
• LED backlight
• DC voltage input
• Connection to drive the display module is via FPC (Flexible Printed Circuit)
• Operating temperature range: -20 to +70°C
• Viewing direction: 6 o’clock (DT035TFT and DT035TFT-TS are: 12 o’clock)
• Touch screen versions come fitted with a 4 wire resistive touch screen

Note

Suitable 45-way, 0.5mm pitch, 0.3mm thickness (with stiffener) FFC/FPC connectors for use with these Displaytech TFT LCD display modules are: 738-8950, 772-7027 or 772-6756.

Displaytech LCD Module

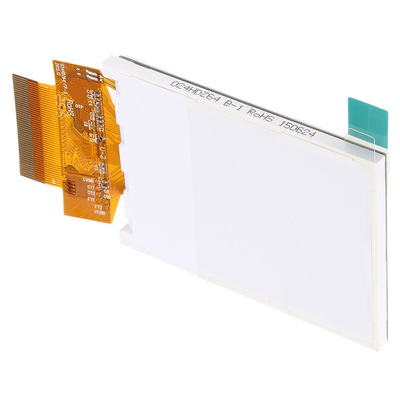

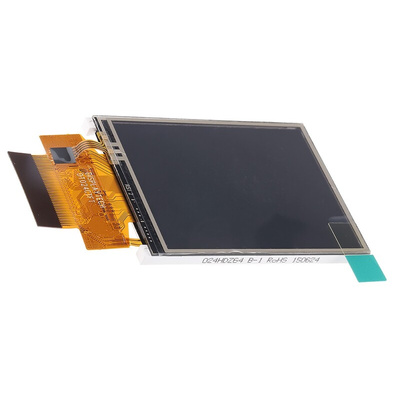

The Displaytech TFT LCD module has a resolution of 240 x 320 pixels and diagonal display size of 2.4in. It is designed to combine performance with value. This reliable TFT LCD module is suitable for a wide variety of industrial, medical and consumer applications. The driver ICs is mounted directly on to the glass.
Note
Suitable 45-way, 0.5mm pitch, 0.3mm thickness (with stiffener) FFC/FPC connectors for use with these Displaytech TFT LCD modules are 738-8950, 772-7027 or 772-6756.

Features and Benefits

Connection to drive the display module is via FPC (Flexible Printed Circuit)
DC voltage input
LED backlight
Touch screen versions come fitted with a 4 wire resistive touch screen
Transmissive display mode
Interface type is RGB
Operating temperature is between -20°C and 70°C

Displaytech Colour LCD Graphic Dispalys
