900-00005, Parallax Inc 4 → 6 V 140 mA Servo Motor, 27 Ncm Max Output Torque, Серводвигатель

R/C servo motor, standard 180deg

The Parallax Standard Servomotor is ideal for prototyping robot arm and animatronic applications . It can hold any position over a 180° range and is easily interfaced with any microcontroller able to produce a 50Hz PWM output.

• High-precision gears made of polyacetal resin for smooth operation with no backlash
• Torque: 38 oz-in @ +6V

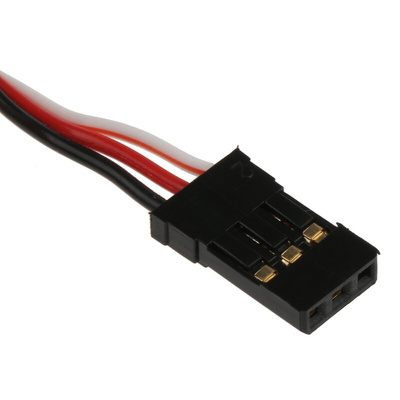

• Standard R/C (hobby) servo mounting and 3-pin connector
• Power supply: +4V to +6Vdc, 15 to 200mA
• Operating temperature range: -10 to +50°C
• Dimensions: 55.8 x 19 x 40.6mm excluding servo horn
• Weight: 44g

Parallax offer an extensive range of sensor, communication and interface modules for the experimenter working on robotic systems. Most are supplied with extensive documentation making them ideal for use in education. Further information and tutorials are available from the Parallax website: http://learn.parallax.com/

Datasheet
