TMR 1-4815, TRACOPOWER TMR 1 DC-DC Converter, 24V dc/ 42mA Output, 36 → 75 V dc Input, 1W, Through Hole, +85°C Max Temp, Преобразователь

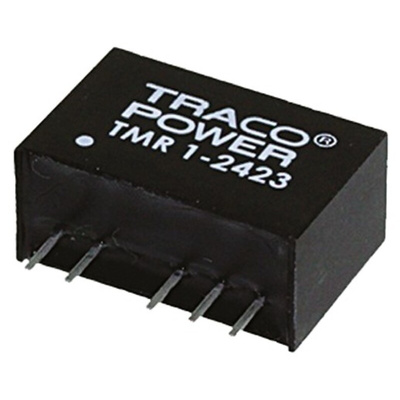

Traco Power DC-DC Converter, SIP-6 Format, 78% Efficiency - TMR 1 Series - TMR 1-4815

For efficient power distribution where space is limited, reach for this DC-DC converter from Traco Power. An ultra-compact SIP-6 format means it has a small footprint – dimensions of 17 (L) x 7.62 (W) x 11mm (D) ensure the unit won't crowd your PCB. It accepts a wide 2:1 range of input voltages between 36 and 75V DC, dialling them down to a fully regulated 24V DC output. Integral short-circuit protection stops power faults in their tracks and cuts out the risk of electric shocks.

Features & Benefits

• 1.5kV DC isolation voltage protects equipment from spikes
• Stands firm against industrial vibration thanks to stable through-hole mounting
• Broad operating temperature range between -40°C and +95°C makes it suitable for use in extreme conditions
• Maximum ripple and noise of 110mVp-p keeps your system humming along without interference

Applications

• Mechanical engineering
• Industrial process controls
• Data servers

How efficient is this DC-DC converter?

The unit hits 78% efficiency at full load, so saves energy and doesn't produce excess heat.

How much does this device weigh?

It tips the scales at just 3.1g, making it an ultra-lightweight choice that won't strain your board.
