TSR 3-24150, TRACOPOWER Switching Regulator, Through Hole, 5 → 15V dc Output Voltage, 10 → 30V dc Input Voltage, 3A, Импульсные стабилизаторы

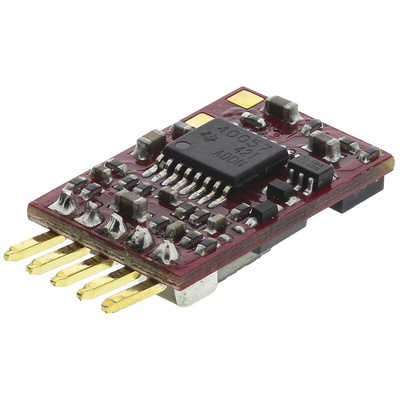

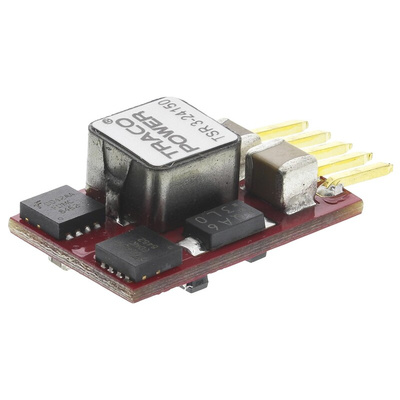

Traco Power Switching Regulator, 10 to 30V DC Input Voltage, 5 to 15V DC Output Voltage - TSR 3 Series - TSR 3-24150

Looking to scale down your voltage and level up your efficiency? Choose this single-output switching regulator from Traco Power. It takes an input voltage between 10 and 30V DC down to an output voltage between 5 and 15V DC for use with low-power devices. A wide operating temperature range between -40°C and +85°C means this component holds its own in challenging environments. Thanks to a high efficiency rating of 95%, it wastes little energy as heat to ensure it doesn't lose its cool. A feather-light weight of just 2.1g will go unnoticed by your equipment.

Features & Benefits

• MTBF of 4.5 million hours for long-term reliability
• Protection against short circuits to minimise the risk of electrical damage
• Remote on/off function for convenient control

Applications

• Consumer electronics
• Medical devices
• Industrial automation
• Power supplies

How quickly does this switching regulator work?

This switching regulator has a speedy response time between 120 and 220μs, so you can rest assured it reacts quickly to inputs.
