THN 30-2411WI, TRACOPOWER THN 30WI DC-DC Converter, 5V dc/ 6A Output, 9 → 36 V dc Input, 30W, Through Hole, +85°C Max Temp, Преобразователь

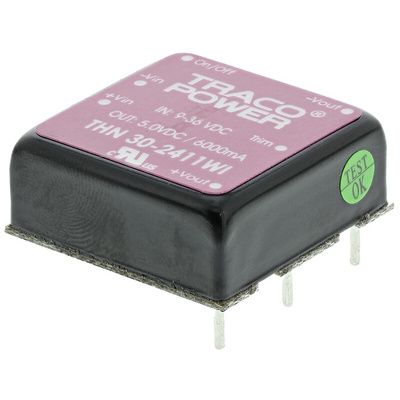

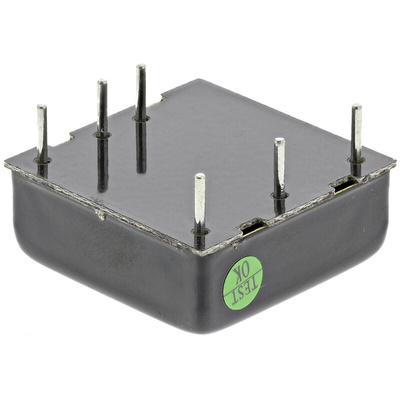

Traco Power DC-DC Converter, PCB Mounting, Single Output - THN 30WI Series - THN 30-2411WI

Need to reliably reduce the voltage from a DC energy source? Pick this handy 30W DC-DC converter from Traco Power. It accepts an input of 9 to 36V and steps it down to the stable 5V output needed to keep your equipment ticking over smoothly. Thanks to its compact dimensions of 25.4 (L) x 25.4 (W) x 9.9mm (D), this unit takes up minimal space on your PCB. A high mean time between failures of 1,200,000 hours means you can trust it to get the job done in the long term.

• 89% efficiency means it wastes minimal energy as heat, so runs cool
• Maximum operating humidity of 95% RH for use in areas with high levels of non-condensing water vapour
• Through-hole mounting means it's simple to install
• Isolation voltage of 1.5kV DC keeps staff and equipment safe
• Light weight of 16.5g won't put pressure on your PCB

Applications

• Small-scale electronic appliances
• Smart lighting networks
• Medical devices

Is this unit suitable for use in harsh conditions?

Yes. This DC-DC converter has a broad operating temperature range between -40°C and +80°C, so it's a reliable option for challenging settings.

THN 30-2411WI Datasheet

Industrial Power Solutions Catalogue

Selection Guide
