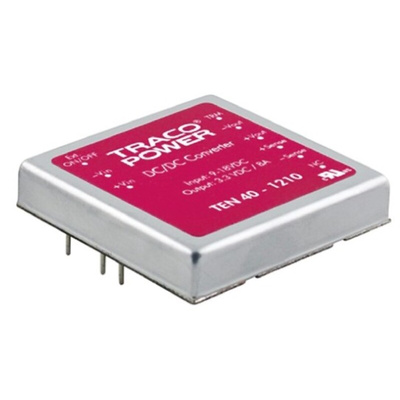

TEN 40-1223, TRACOPOWER TEN 40 DC-DC Converter, ±15V dc/ 1.4A Output, 9 → 18 V dc Input, 40W, Through Hole, +75°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 2 Outputs, 85% Efficiency - TEN 40 Series - TEN 40-1223

To reliably change the voltage of a direct-current power source, wire up this 40W DC-DC converter from Traco Power. The nifty device turns an input voltage between 9 and 18V DC into an output voltage of ±15V DC to steadily power your low-voltage devices. This helps to prevent breakdowns and keep your equipment in good nick. Thanks to an MTBF of over 920,000 hours at +25°C, it's built to last for a long time.

Features & Benefits

• Through-hole connection offers a strong and reliable mounting solution
• Compact dimensions of 50.8 (L) x 50.8 (W) x 10.2mm (D) mean it takes up minimal space on your PCB
• Continuous short-circuit protection safeguards against damage
• Light weight of 65g keeps excess mass on your setup to a minimum
• Nickel-plated copper casing is resistant to impact and corrosion for durability in harsh environments

Applications

• Battery-operated equipment
• Communications devices
• Industrial electronics

Can I use this product in extreme temperatures?

Yes, you can. This DC-DC converter has a wide operating temperature range between -40°C and +75°C, so it's hardy enough to withstand tough industrial conditions.
