9GA0412P6G001, Sanyo Denki San Ace 9GA Series Axial Fan, 12 V dc, DC Operation, 25m³/h, 2.76W, 230mA Max, 40 x 40 x 20mm, Вентилятор

San Ace Low Power DC Fans - GA Series

San Ace GA series low power DC fans are a highly power efficient solution to a range of fan requirements. Featuring high air flow, high static pressure and low noise.

Low power high performance fans offering 15% to 38% energy saving over conventional fans
Improved impeller, guided vanes, reduced mass, reduced noise by between 2dB and 6dB
PWM control to further optimise power consumption and noise level (except 60 x 60 x10 mm frame size which have tachometer output only)
High static pressure and high airflow
Static pressure optimised at inflection point where fan operated for high impedance applications
30,000 to 60,000 hour life fans @ 60 Degree C
Permanently lubricated dual ball bearing system

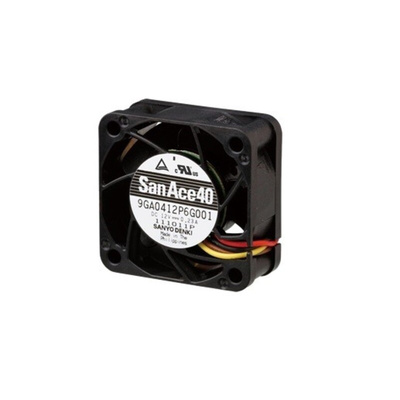

Sanyo Denki Axial Fan, 12V DC, 25.2m³/h Air Flow - San Ace GA Series - 9GA0412P6G001

Keep the operating temperature of your electronic systems cool with this axial fan from Sanyo Denki. It stops devices from overheating, helping to prevent machine failure and premature deterioration of parts. The fan features a high airflow rate of 25.2m³/h for optimal cooling of equipment. As this fan's blades are rotated by a permanently lubricated ball bearing system, there's no need to grease its bearings, reducing maintenance time.

Features & Benefits

• Frame and impeller made from flame-retardant plastic for safety in the event of a fire
• Robust expected lifespan of 40,000 hours for long-lasting performance
• Motor is protected against burnout and reverse polarity to reduce the risk of damage due to an electrical fault
• Wide operating temperature range of -20°C to +70°C for use in demanding environments

Applications

• Automotive industry
• Medical and dental equipment
• Electrical cabinets and enclosures
• Server racks

How does an axial fan operate?

An axial fan uses its blades to draw air into the device and then releases it on the same parallel axis as its spinning shaft.
