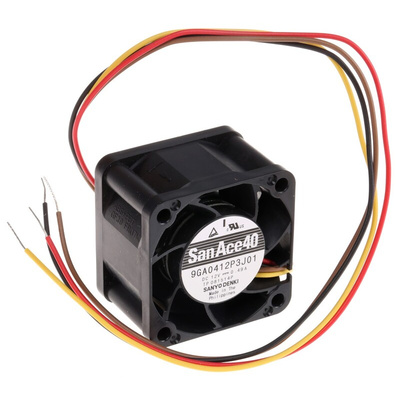

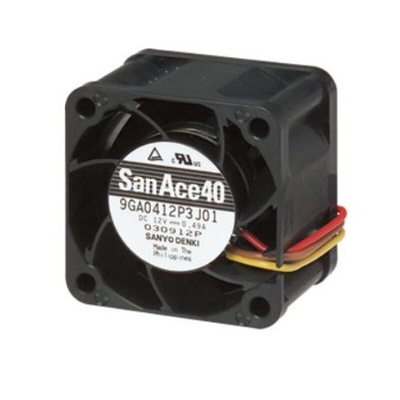

9GA0412P3J01, Sanyo Denki San Ace 9GA Series Axial Fan, 12 V dc, DC Operation, 33m³/h, 5.88W, 490mA Max, 40 x 40 x 28mm, Вентилятор

San Ace Low Power DC Fans - GA Series

San Ace GA series low power DC fans are a highly power efficient solution to a range of fan requirements. Featuring high air flow, high static pressure and low noise.

Low power high performance fans offering 15% to 38% energy saving over conventional fans
Improved impeller, guided vanes, reduced mass, reduced noise by between 2dB and 6dB
PWM control to further optimise power consumption and noise level (except 60 x 60 x10 mm frame size which have tachometer output only)
High static pressure and high airflow
Static pressure optimised at inflection point where fan operated for high impedance applications
30,000 to 60,000 hour life fans @ 60 Degree C
Permanently lubricated dual ball bearing system

Sanyo Denki Axial Fan, 54dB Noise Level, 18,000rpm Speed - San Ace 9GA Series - 9GA0412P3J01

This axial fan from Sanyo Denki provides efficient cooling for your enclosed appliances. Its low power rating of 5.88W makes it an energy-efficient choice. Thanks to its compact dimensions of 40 (height) x 40 (width) x 28mm (depth), the unit is suitable for installation in enclosures with limited space. The device reaches high fan speeds of up to 18,000rpm, so you can rely on it for powerful ventilation. It has a long expected lifespan of 40,000 hours for long-lasting performance.

Features & Benefits

• Voltage rating of 12V DC for use in low-power applications
• Low sound output of 54dB for quiet operation
• Locked rotor burnout protection to prevent damage
• Integrated pulse sensor system accurately measures fan speed for precise control

Applications

• Power generators
• Air compressors
• Warehouses
• Automotive industry

Does this axial fan vibrate at high speeds?

This axial fan has a built-in ball bearing that minimises the friction generated as the propellers turn, limiting the unit's vibration at high speeds. This helps to keep the fan stable and quiet.
