9GA0612P7G01, Sanyo Denki San Ace 9GA Series Axial Fan, 12 V dc, DC Operation, 41m³/h, 1.92W, 160mA Max, 60 x 60 x 15mm, Вентилятор

San Ace Low Power DC Fans - GA Series

San Ace GA series low power DC fans are a highly power efficient solution to a range of fan requirements. Featuring high air flow, high static pressure and low noise.

Low power high performance fans offering 15% to 38% energy saving over conventional fans
Improved impeller, guided vanes, reduced mass, reduced noise by between 2dB and 6dB
PWM control to further optimise power consumption and noise level (except 60 x 60 x10 mm frame size which have tachometer output only)
High static pressure and high airflow
Static pressure optimised at inflection point where fan operated for high impedance applications
30,000 to 60,000 hour life fans @ 60 Degree C
Permanently lubricated dual ball bearing system

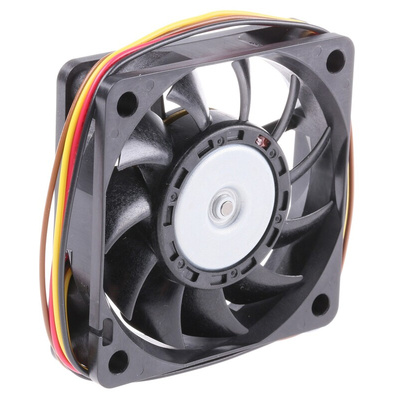

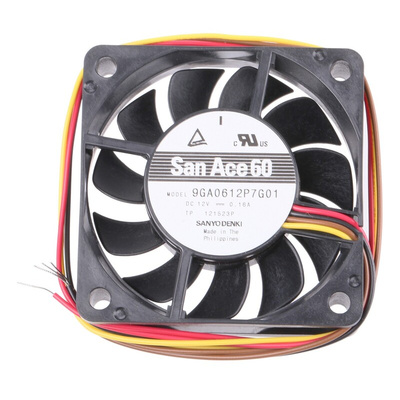

Sanyo Denki Axial Fan, 38dB Noise Level, 5900rpm Maximum Speed - San Ace 9GA Series - 9GA0612P7G01

Need an effective cooling device for your setup? Choose this axial fan from Sanyo Denki. It's a good choice for ventilation in tight spaces thanks to its compact dimensions of 60 (height) x 60 (width) x 15mm (depth). This component has a maximum airflow rate of 40.8m³/h for powerful performance. Its low sound output of just 38dB means it won't add too much background noise to your work environment. The fan's dual ball bearing design minimises friction, helping to reduce wear for an extended service life.

Features & Benefits

• Voltage rating of 12V DC for use in low-power systems
• Power rating of 1.92W for energy efficiency
• High fan speed of 5900rpm for efficient cooling
• Robust expected lifespan of 40,000 hours at +60°C and 70,000 hours at +40°C for long-lasting performance
• Plastic frame and impeller are self-extinguishing in 10 seconds for safety in the event of a fire

Applications

• Telecommunications
• Warehouse cooling systems
• Medical facilities

Can I use this axial fan in high-heat environments?

Yes, this axial fan has a broad operating temperature range of -20°C to +70°C, making it suitable for use in demanding environments.

San Ace 60, 15mm thick (9GA type)_EN

San Ace Cooling Fan Catalogue

Catalogue - Cooling Fan
