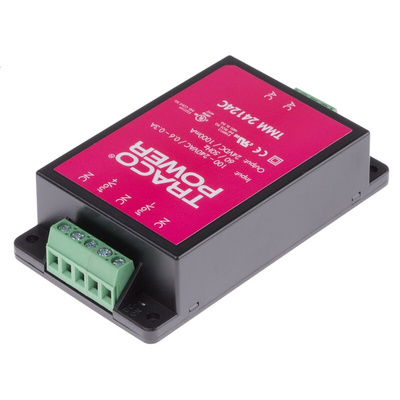

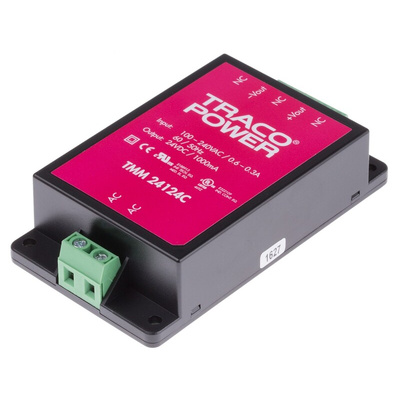

TRACOPOWER Switching Power Supply, TMM 24124C, 24V dc, 1A, 24W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

Traco Power Switching Power Supply, 300mW Maximum Power Consumption, 137g Weight - TMM 24 Series - TMM 24124C

Keep your circuits stable with this single-output switching power supply from Traco Power. It converts AC input voltages between 85 and 264V to the stable 24V DC output needed to keep your kit running without a hiccup. Sturdy plastic resin housing encapsulates the inner components to protect them against dust, so you can be sure of a long service life, even in contaminated settings. An isolation voltage of up to 4,000V AC keeps this unit protected from electrical spikes.

Features & Benefits

• Compact dimensions of 22.3mm (D) x 96mm (L) x 54mm (W) to slot easily into tight setups
• Automatic shutdown at +142°C secures the unit in the event of overheating
• Continuous short-circuit protection to shrug off electrical faults
• Wide operating temperature range between -40°C and +80 °C means it's suitable for use in demanding conditions
• Low weight of 137g so it's handy for portable devices

Applications

• Medical devices
• Transportation industry
• Mechanical workshops
• Industrial automation

How do I mount this switching power supply?

This product is designed for chassis mounting, which keeps it firmly secured even in vibrating applications.
