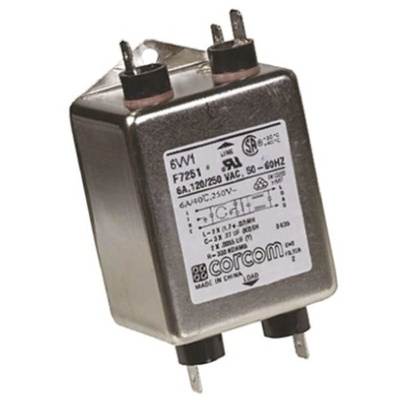

6VV1, TE Connectivity, Corcom V 6A 250 V ac 50/60Hz, Flange Mount RFI Filter, Fast-On, Single Phase

Corcom V & W Series Multipurpose Power Line RFI Filter for Emission Control

Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.

Both types are effective in controlling emissions in equipment using SCR and T2L circuits for compliance with FCC Part 15, Subpart J and EN55022, Level A, down to 150kHz

Offers an N = 3 (“T”) Line to Ground impedance to common mode and an N = 5 “Dbl. Pi”) impedance for Line to Line differential mode interference
Designed for susceptibility use when equipment impedance at RF frequencies is low

V Series

Offers an N = 4 (“Dbl. L”) Line to Ground impedance for common mode and an N=5 (“Dbl.Pi”) impedance for Line to Line differential mode interference
Designed for use when equipment impedance at RF frequencies is high
Two stage construction provides excellent suppression at high frequencies

W Series

Approvals

UL, CSA and VDE

Multipurpose Power Line RFI Filter for Emission Control V & W Series
