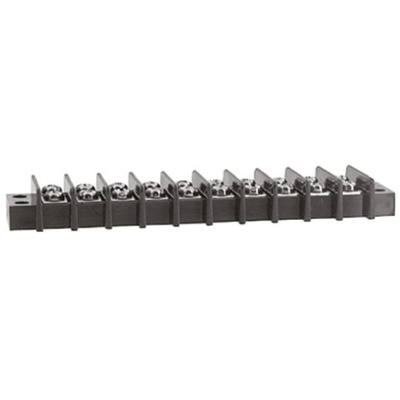

1-1546670-0, TE Connectivity Barrier Strip, 10 Contact, 11.1mm Pitch, 2 Row, 25A, 300 V, Клеммная колодка

Double Row, Dual Barrier Strips - 0.437in. (11.1mm) Centreline - with Binding Head Screws

Double-row, dual barrier strips for wire-to-wire applications. These parts also allow end users to complete the wiring to a separate screw without disturbing the factory wiring. Increased current-carrying capability.

Materials used:
Insulator Body: UL 94 V-0 thermoplastic, black
Terminal: Brass, tin plated
Screw: #6-32 Steel, nickel-plated; M4.0 Steel, nickel-plated (14.3 mm)

Closed Bottom Design Allows for Mounting Direct to Sheet Metal Panel
Molded to Length
Wire-to-Wire Termination
Available with Either Binding Head Screws or Wire Clamp
Accessories Such as Quick-Connect Tabs and Jumpers Available
Current Rating: 25 A, 300 VAC
Wire Range: 22-14 AWG
Withstanding Voltage: 2000 VAC Min.
Insulation Resistance: >5000 MΩ @ 500 VDC
Operating Temperature: –40°F to +221°F (–40°C to +105°C)
