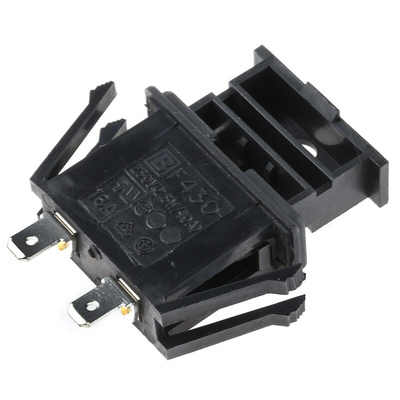

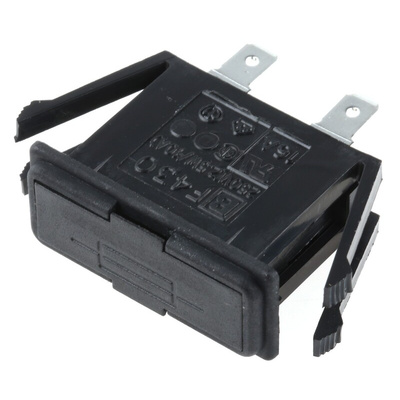

FX0430/48, Bulgin 10A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac, Держатель предохранителя

Bulgin Captive Drawer Fuse Holders

From Bulgin these captive drawer fuse holders have been designed to give the required protection for all your electronic equipment and have been manufactured using high grade flame retardant materials.

These captive drawer fuse holders are designed for 5x20mm fuses and feature protection against shock to category PC3, whilst the captive drawer design allows for even more flexibility and ease of use.

Features and Benefits

• Protection category PC3
• Fuse size 5 x 20mm
• Captive drawer
• Facility for spare fuse in drawer
• Suitable for panel thickness of 1.0, 1.5, 2.0 and 3.0mm
• Contacts brass, tin plated
• Fuse clips phosphor bronze, nickel plated
• Nylon body

Approvals

UL, VDE, CSA, IMQ

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

IMQ CA03-00235

VDE 40008844

Datasheet
