3402.0003.11, SchurterSMD Non Resettable Fuse 63mA, 63V ac/dc, Предохранитель

Schurter OMF 63 Series Surface Mount Fuses

Schurter OMF 63 series surface mount high breaking capacity fuses are quick acting and compact. The OMF 63 fuse series is suitable for a wide range of applications, including industrial and domestic electronics, medical equipment and power supplies.

Directly solderable on printed circuit boards
Low melting l2t values
Fast interruption
Compact design

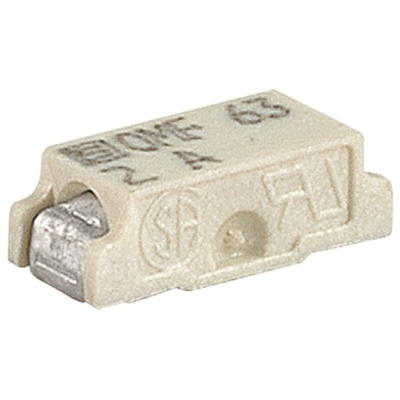

Schurter Surface Mount Fuse

The Schurter OMF 63 surface mount quick acting fuse has a thermoplastic housing and a tin plated copper alloy terminal. This surface mount fuse offers considerable space saving features. Performance characteristics of the UMT SMD fuse are suitable for several low voltage applications. The FF type is ideal for protection of high value silicon ICs. This fuse has an electrical rating of 63VDC/VAC and 63mA.

Features and Benefits

• Service temperature ranges between -40°C and 125°C
• Suitable for all SMD soldering processes
• Breaking capacity is 50A

Applications

• Medical equipment
• Power supplies
• Industrial electronics

Certifications

• CSA C22.2 no. 248.14 certified
• IEC 60127-4/2 certified
• UL 248-14 approved

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
