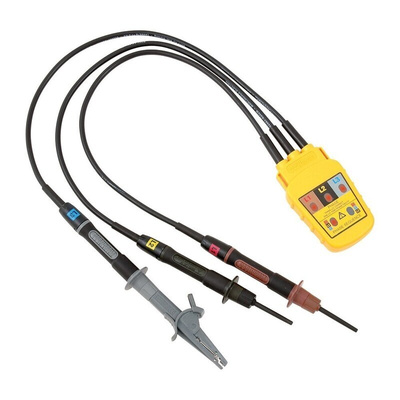

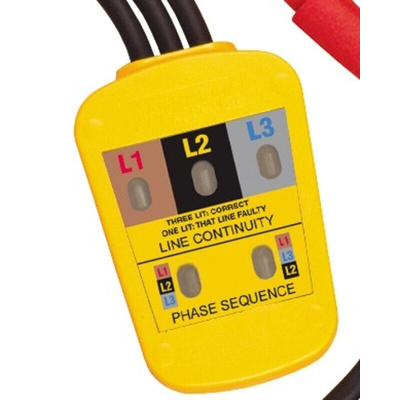

PC15250 Phase Sequence Indicator

The PC15250 Phase Rotation Tester is a simple and quick 3 phase continuity and rotation indicator.

The phase sequence indicator gives a fast and effective identification of worn or unmarked cables and ensures 3-phase outlets and machines are wired correctly
Retractable GS38 probe shields give a choice between using long, exposed tips for reaching inaccessible contacts, and safer, shorter lengths for increased safety
Input voltage range: 50V to 600V AC (Phase to Phase)
Input frequency: 40 to 60Hz
Input current: < 3mA
Conforms to GS38 and BS EN61557-7, CAT IV 600V
Class II, Double Insulation

Supplied with

One fused crocodile clip, two fused prods with retractable GS38 shrouds, instructions.

Martindale Phase Sequence Indicator

The Martindale phase rotation indicator has a voltage range of 50V to 600V and a frequency range of 40Hz to 60Hz. It includes one fused crocodile clip, two fused prods with retractable GS38 shrouds, and an instruction manual.

Features and Benefits

Input current:<3mA
The phase sequence indicator gives a fast and effective identification of worn or unmarked cables and ensures three-phase outlets and machines are wired correctly
Retractable GS38 probe shields give a choice between using long, exposed tips for reaching inaccessible contacts, and safer, shorter lengths for increased safety
Class II, double insulation
Operating temperature ranges between -10°C and 55°C

Applications

Feed motors
Drives
Electrical systems

Certifications

CE
EN61326-2-2
CAT IV 600V safety rated

Instruction Manual PC15250 Phase Sequence Indicator

PC15250 Phase Sequence Indicator
