XP1001000-05R, Lantronix Adapter, Модуль

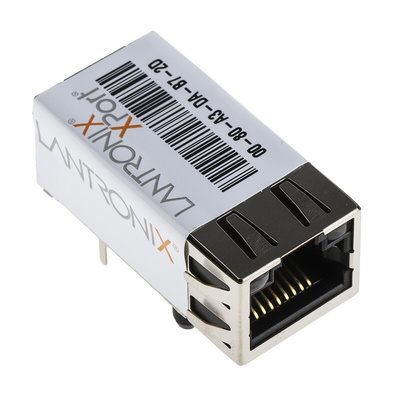

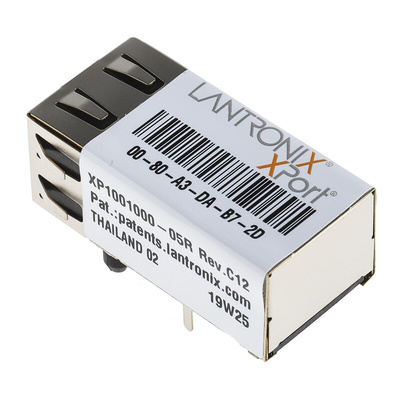

Lantronix Server Module

The Lantronix Module is a compact, integrated solution any web-enabled device with serial capability. XPort series removes the complexity of designing network connectivity into a product by incorporating all the required hardware and software in an extended RJ45 PCB mount socket. It includes all the essential networking features, including a 10BaseT/100Base transmission Ethernet connection and an SoC with the operating system, embedded web server, e-mail alerts and full TCP/IP protocol stack. It required 3.3VDC supply power.

Features and Benefits

Robust real time operating system (RTOS)
Fully featured network protocol stack
Built-in web server for device communication and configuration via a standard browser
Security provides 256-bit AES Encryption, password protection
Internal web server has storage capacity of 384kb for web pages
Based on the DSTni-EX Enhanced 16-bit x86 architecture with 512KB Flash memory, 256KB SRAM
Firmware upgradeable via TFTP and serial port
Host communication via serial UART with RTS/CTS flow control
Host interface is serial UART
Data rate is 300bps to 921.6kbps
Included software are MS windows-based Device Installer, com port redirector

Applications

Remote diagnostics and upgrades
Asset tracking and replenishment
Automation and control
Power management
Remote collaboration
Personalized content delivery
