XDT2321002-01-S, Lantronix Serial Device Server, 1 Ethernet Port, 1 Serial Port, RS232, RS422, RS485 Interface, 921.6kbit/s Baud Rate, Сервер

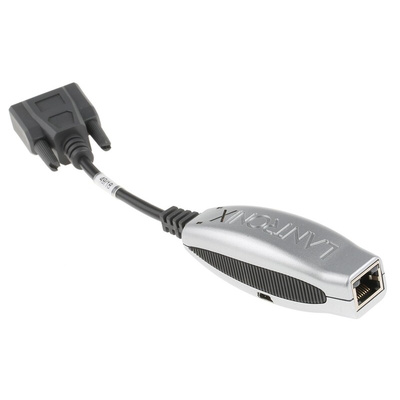

Lantronix Ethernet Adapter

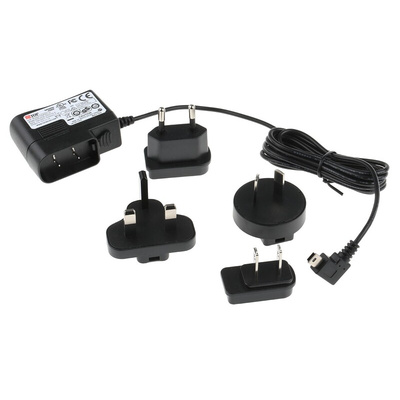

The Lantronix adaptor is a sleek and compact serial-to-Ethernet device server. This device provides quick and easy Ethernet connectivity to virtually any device or machine with a serial RS-232 interface. It requires 5VDC power supply from the mini USB connector or 5VDC to 15VDC on Pin 9 of DE9 connector. With an integrated Ethernet port and serial cable, multiple power options including PoE and an industry-best five-year warranty. It also provides a portable, extremely flexible and highly affordable network connectivity solution. xDirect comes with a built-in web server that enables users to access and configure the unit using a standard web browser on a PC, smartphone, or tablet from anywhere.

Features and Benefits

Serial RS-232 Interface:

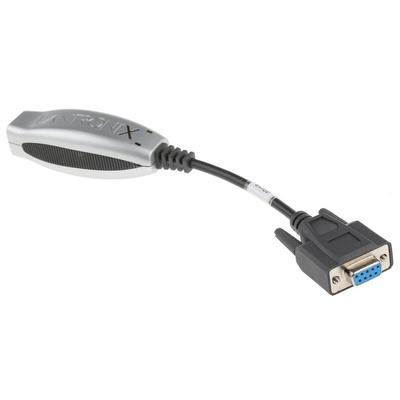

Connector is DE9 female (DCE pinned)
Baud rate is 300bps to 921.6Kbps
Modem control signals are DTR, DSR/DCD
Flow control is XON/XOFF (software), CTS/RTS (hardware)
Ethernet Interface
Connector is RJ45
10Base-T /100Base-T (auto-sensing)
Protocols are UDP, TCP, ARP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, HTTP, Telnet com port control
Security is 128/192/256-bit AES Encryption
Configuration options are Web Browser, Telnet client, serial terminal
LED Indicators are power/status, link, activity, serial rx activity and tx activity
Processor based on DSTni-EX Enhanced 16-bit x86 architecture with 1MB Flash memory, 256KB SRAM
Operating temperature ranges from 40°C and 85°C
Isolations are15kV ESD protection on RS-232 port, 1500VAC isolation on Ethernet port
Software is windows-based device installer, windows-based com port redirector

Certifications

CE certified
FCC certified
UL approved
